Products > Bearing Units > Bearings Unit – UKP

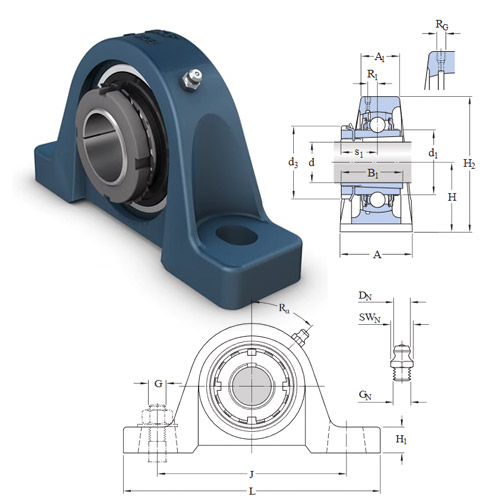

Bearing Unit UKP เป็นชุดตลับลูกปืนพร้อมเสื้อแบบ Pillow Block Unit ที่ใช้ลูกปืนชนิด UK Insert Bearing รูเพลา Tapered Bore ติดตั้งร่วมกับ Adapter Sleeve เพื่อยึดเพลาเรียบได้อย่างมั่นคง เหมาะสำหรับเครื่องจักรอุตสาหกรรม ระบบลำเลียง และเครื่องจักรการเกษตร ช่วยให้การติดตั้งง่าย ปรับตำแหน่งเพลาได้สะดวก และให้การหมุนที่ราบรื่น

| Designation | Shaft diameter (d) | Housing overall width (A) | Centre distance between bolt holes (J) | Basic dynamic load rating | Limiting speed | Link |
|---|---|---|---|---|---|---|
| Designation | Shaft diameter (d) | Housing overall width (A) | Centre distance between bolt holes (J) | Basic dynamic load rating | Limiting speed | Link |
| mm | mm | mm | kW | rpm | ||
| UKP 205 K/H + H2305 | 20 | 38 | 105 | 14.0 | 5850 | https://lin.ee/n5fLKc0 |
| UKP 206 K/H + H2305 | 25 | 45 | 121 | 19.5 | 5000 | https://lin.ee/n5fLKc0 |
| UKP 207 K/H + H2305 | 30 | 46 | 127 | 25.5 | 4300 | https://lin.ee/n5fLKc0 |
| UKP 208 K/H + H2305 | 35 | 49 | 137 | 30.7 | 3750 | https://lin.ee/n5fLKc0 |
| UKP 209 K/H + H2305 | 40 | 51 | 146 | 33.2 | 3400 | https://lin.ee/n5fLKc0 |
| UKP 210 K/H + H2305 | 45 | 56 | 159 | 35.1 | 3300 | https://lin.ee/n5fLKc0 |
| UKP 211 K/H + H2305 | 50 | 59 | 171 | 43.6 | 3000 | https://lin.ee/n5fLKc0 |
| UKP 212 K/H + H2305 | 55 | 62 | 184 | 52.7 | 2700 | https://lin.ee/n5fLKc0 |
| UKP 213 K/H + H2305 | 60 | 72 | 203 | 57.2 | 2350 | https://lin.ee/n5fLKc0 |
| UKP 215 K + H2305 | 65 | 73 | 217 | 66.3 | 2100 | https://lin.ee/n5fLKc0 |
| UKP 216 K + H2305 | 70 | 78 | 232 | 72.8 | 2400 | https://lin.ee/n5fLKc0 |
| UKP 217 K + H2305 | 75 | 83 | 247 | 83.2 | 1750 | https://lin.ee/n5fLKc0 |
| UKP 218 K + H2305 | 80 | 88 | 262 | 95.6 | 1600 | https://lin.ee/n5fLKc0 |
