Speedi-Sleeve – Metric Size

บริษัท ไทยภาสิทธิ์ จำกัด จำหน่าย SKF Speedi-Sleeve ปลอกซ่อมผิวเพลาคุณภาพสูง สำหรับแก้ปัญหาเพลาสึก ร่องสึก หรือผิวเพลาไม่เรียบจากการใช้งานร่วมกับซีลน้ำมัน (Oil Seal) โดยไม่จำเป็นต้องถอดเพลาไปกลึงซ่อมหรือเปลี่ยนใหม่ ช่วยลดต้นทุน ลด Downtime และเพิ่มอายุการใช้งานของเครื่องจักรได้อย่างมีประสิทธิภาพ

คุณสมบัติเด่นของ Speedi Sleeve

ติดตั้งง่าย ไม่ต้องถอดเพลาออกจากเครื่องจักร
ผิวแข็งแรง เรียบ และแม่นยำสูง
ลดการรั่วซึมของน้ำมันจากจุดสัมผัสซีล
ใช้กับเพลาขนาด 12 – 200 mm
ประหยัดค่าใช้จ่ายกว่าการเปลี่ยนเพลาใหม่
รองรับการใช้งานกับ Radial Shaft Seals และ Oil Seals

Speedi Sleeve เป็นโซลูชันที่ช่วยยืดอายุการใช้งานของระบบซีล และเพิ่มความน่าเชื่อถือของเครื่องจักรในระยะยาว ไทยภาสิทธิ์ จำกัด พร้อมให้คำแนะนำการเลือกขนาด Speedi Sleeve ให้เหมาะสมกับขนาดเพลาและประเภทซีลของคุณ

ขอใบเสนอราคา :

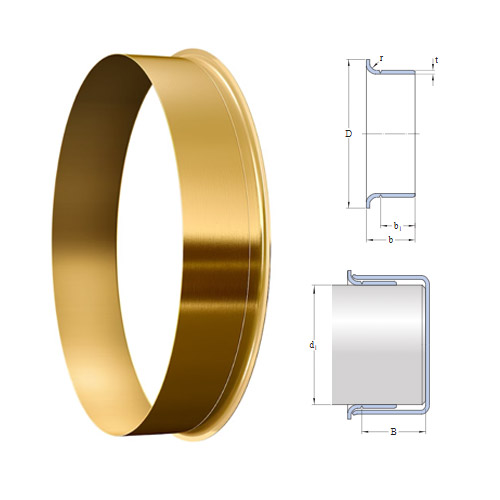

Designation	Width	Shaft diameter, minimum	Shaft diameter	Seal seat width	Type
Designation	Width	Shaft diameter, minimum	Shaft diameter	Seal seat width	Type
	[mm]	[mm]	[mm]	[mm]
99048	20.65	76.2	76.2	15.88	Standard
99049	8.41	11.99	11.99	5.99	Standard
99050	8.74	12.65	12.7	6.35	Standard
99053	18.01	79.35	79.38	14	Standard
99055	9.93	13.89	14	6.35	Standard
99056	9.93	14.22	14.3	6.35	Standard
99058	11.13	15.9	16	7.95	Standard
99059	8.99	14.96	15.01	5	Standard
99060	11.13	17.32	17.37	7.95	Standard
99062	10.31	15.82	15.88	7.95	Standard
99068	11	16.94	16.99	8	Standard
99076	11.13	19	19.05	7.95	Standard
99078	11	19.94	19.99	8	Standard
99080	11.13	19.81	19.84	7.95	Standard
99081	11.13	19.28	19.3	7.95	Standard
99082	11	17.88	18.01	8	Standard
99083	14.3	20.62	20.65	9.53	Standard
99084	9.12	21.87	22	6.58	Standard
99085	11.99	21.87	22	8	Standard
99086	9.53	21.77	21.82	6.35	Standard
99087	11.13	22.17	22.23	7.95	Standard
99091	11.13	23.06	23.11	7.95	Standard
99092	11.13	23.88	24	7.95	Standard
99094	11.13	24.54	24.61	7.95	Standard

99096	18.26	24.54	24.61	15.88	Standard
99098	11	24.94	24.99	7.95	Standard
99103	11.99	25.88	26.01	8	Standard
99106	11.13	26.92	27	7.95	Standard
99108	11.13	27.61	27.66	7.95	Standard
99111	12.7	27.94	27.99	9.53	Standard
99112	11.13	28.52	28.58	7.95	Standard
99114	11	29.95	30	8	Standard
99116	12.7	28.52	28.58	9.53	Standard
99118	11.13	30.1	30.18	7.95	Standard
99120	12.7	29.31	29.36	9.53	Standard
99121	18.01	32.94	32.99	15.01	Standard
99122	11.13	29.79	29.85	7.95	Standard
99123	11	30.89	30.96	7.95	Standard
99125	11.13	31.67	31.75	7.95	Standard
99128	11.13	31.93	32	8	Standard
99129	9.53	33.22	33.35	6.35	Standard
99131	15.88	33.27	33.35	12.7	Standard
99133	11.13	34.82	34.93	7.95	Standard
99134	15.88	33.86	34.01	12.7	Standard
99138	15.88	34.82	34.93	12.7	Standard
99139	16	34.93	34.93	13	Standard
99141	11.13	31.42	31.5	8	Standard
99143	17.48	36.37	36.53	14.3	Standard

99144	12.7	36.45	36.53	9.53	Standard
99146	16.99	35.84	35.99	13	Standard
99147	16.99	37.85	38	13	Standard
99149	17.48	38.02	38.1	14.3	Standard
99150	12.7	38.02	38.1	9.53	Standard
99152	14.3	38.61	38.68	11.13	Standard
99153	12.93	39.85	40.01	9.91	Standard
99155	14.3	39.34	39.42	11.13	Standard
99156	17.48	39.6	39.67	14.3	Standard
99157	16	39.93	40.08	13	Standard
99159	19.05	39.78	39.85	15.88	Standard
99160	16.28	40.69	40.77	12.7	Standard
99161	11.13	41.2	41.28	7.95	Standard
99162	17.48	41.2	41.28	14.3	Standard
99163	15.88	40.84	41	12.7	Standard
99165	17.5	41.99	42.06	13.97	Standard
99166	14.5	41.83	41.91	11.3	Standard
99167	11.13	42.8	42.88	7.95	Standard
99168	17.48	42.77	42.88	14.3	Standard
99169	17.5	41.83	41.91	14.3	Standard
99170	12.7	44.09	44.17	9.53	Standard
99171	17.48	43.56	43.66	14.3	Standard
99172	12.7	44.37	44.45	9.53	Standard
99174	17.48	44.37	44.45	14.3	Standard

99175	22.23	44.37	44.45	19.05	Standard
99176	17.48	44.73	44.86	14.3	Standard
99177	16.99	44.93	45.01	14	Standard
99179	20.32	45.16	45.24	16.94	Standard
99180	15.88	44.37	44.45	13.49	Standard
99181	17.48	45.95	46.05	14.3	Standard
99182	15.88	42.85	43	12.7	Standard
99184	13.11	47.55	47.63	9.53	Standard
99185	17.48	47.17	47.22	14.3	Standard
99186	26.04	47.4	47.45	22.58	Standard
99187	17.48	47.55	47.63	14.3	Standard
99188	10.54	47.55	47.63	7.49	Standard
99189	16.97	47.93	48.03	14	Standard
99190	7.49	47.55	47.63	4.45	Standard
99192	12.7	48.49	48.56	9.53	Standard
99193	17.48	49.12	49.23	14.3	Standard
99196	16.97	49.91	50.01	14	Standard
99198	17.88	50.22	50.29	14.3	Standard
99199	17.48	50.72	50.8	14.3	Standard
99200	25.4	50.72	50.8	22.23	Standard
99205	23.83	52.25	52.4	19.84	Standard
99210	19.05	53.92	53.98	12.7	Standard
99212	23.83	53.95	53.98	19.84	Standard
99215	22.99	54.91	54.99	19.99	Standard

99218	23.83	55.52	55.58	19.84	Standard
99219	23.83	57.91	57.99	19.99	Standard
99220	15.88	55.83	56.01	12.7	Standard
99224	23.77	55.83	56.01	19.79	Standard
99225	23.83	57.12	57.15	19.84	Standard
99226	22.86	56.82	56.9	19.41	Standard
99227	11.13	57.12	57.15	7.95	Standard
99229	15.88	56.57	56.64	12.7	Standard
99230	23.01	56.57	56.64	19.84	Standard
99231	23.83	58.65	58.75	19.84	Standard
99233	22.23	59.11	59.13	19.05	Standard
99235	22.99	59.92	59.99	19.99	Standard
99237	23.83	60.3	60.33	19.84	Standard
99238	19.05	60.25	60.33	15.09	Standard
99240	17.35	60.3	60.33	13.36	Standard
99241	11.43	59.92	59.99	9.4	Standard
99242	15.88	61.85	61.93	12.7	Standard
99243	23.83	61.82	61.93	19.84	Standard
99244	15.88	61.82	62	12.7	Standard
99248	16.66	63.5	63.5	12.7	Standard
99249	23.83	63.22	63.3	19.84	Standard
99250	23.83	63.5	63.5	19.84	Standard
99251	23.01	63.75	63.91	19.84	Standard
99253	16.51	63.42	63.5	14.1	Standard

99254	22.99	64.92	65	19.99	Standard
99256	23.83	65.02	65.1	19.84	Standard
99259	23.83	65.91	65.99	19.84	Standard
99260	15.88	66.6	66.68	12.7	Standard
99261	23.83	66.5	66.57	19.84	Standard
99262	23.83	66.68	66.68	19.84	Standard
99264	23.01	66.57	66.68	19.84	Standard
99266	22.23	67.82	68	19.05	Standard
99267	41.28	69.77	69.85	36.53	Standard
99268	23.01	69.27	69.34	19.84	Standard
99269	31.75	69.85	69.85	28.58	Standard
99272	14.3	69.85	69.85	10.31	Standard
99273	23.83	69.6	69.67	19.84	Standard
99274	23.83	69.72	69.85	19.84	Standard
99275	23.83	69.85	69.85	19.84	Standard
99276	24	69.93	70	19.99	Standard
99281	17.48	71.35	71.45	15.09	Standard
99282	16.66	72.09	72.09	12.7	Standard
99284	22.23	71.83	72.01	19.05	Standard
99286	23.83	72.8	72.87	19.84	Standard
99287	23.83	72.97	73.03	19.84	Standard
99289	17.53	74.93	75.01	15.09	Standard
99290	16.28	74.6	74.63	12.7	Standard
99291	15.88	75.95	76.02	12.29	Standard

99292	25.4	75.49	75.54	20.65	Standard
99293	23.83	74.6	74.68	19.84	Standard
99294	26.01	74.93	75.01	22	Standard
99296	23.83	76.12	76.2	20.65	Standard
99298	17.48	75.95	76.02	14.3	Standard
99299	25.4	75.95	76.02	20.65	Standard
99300	25.4	76.2	76.2	20.65	Standard
99301	15.88	76.4	76.48	12.7	Standard
99306	22.23	77.83	78	19.05	Standard
99311	20.65	79.25	79.38	17.48	Standard
99312	25.4	79.25	79.38	20.65	Standard
99313	22.5	79.81	80.01	19.05	Standard
99315	24	79.91	80.01	21.01	Standard
99317	15.01	79.91	80.01	11	Standard
99322	25.4	82.47	82.55	20.65	Standard
99324	18.26	82.55	82.55	15.11	Standard
99325	25.4	82.55	82.55	20.65	Standard
99326	22.23	82.55	82.55	17.48	Standard
99328	21.54	81.92	81.99	16.76	Standard
99331	25.4	84	84.07	20.65	Standard
99332	21.01	84.76	84.89	16.99	Standard
99333	24.99	84.76	84.89	21.01	Standard
99334	12.67	84.79	85.01	10.13	Standard
99337	25.4	85.67	85.73	20.65	Standard

99338	12.7	85.67	85.73	9.53	Standard
99339	23.01	87.25	87.33	19.84	Standard
99340	23.01	88.32	88.39	19.84	Standard
99346	20.65	88.82	88.9	15.88	Standard
99347	12.7	88.9	88.9	7.95	Standard
99349	20.65	88.93	89	15.88	Standard
99350	25.4	88.9	88.9	20.65	Standard
99351	23.01	89.92	89.99	18.03	Standard
99352	13.67	89.92	89.99	11.13	Standard
99353	16.94	89.92	89.99	13.36	Standard
99354	27.99	89.92	89.99	23.01	Standard
99356	25.4	90.42	90.5	20.65	Standard
99359	15.09	94.67	94.74	11.91	Standard
99360	25.4	91.9	91.97	20.65	Standard
99362	25.4	92.02	92.08	20.65	Standard
99363	15.88	92.02	92.08	12.7	Standard
99364	15.09	95	95.07	11.91	Standard
99365	23.83	93.6	93.68	20.65	Standard
99366	23.01	94.67	94.74	19.84	Standard
99367	12.7	95.25	95.33	8.74	Standard
99368	11.13	93.57	93.68	7.95	Standard
99369	24	94.92	95	21.01	Standard
99372	22.23	95.25	95.33	17.48	Standard
99374	12.7	95	95.07	8.74	Standard

99376	17.48	95.15	95.22	14.3	Standard
99386	25.4	98.25	98.32	20.65	Standard
99387	25.4	98.37	98.43	20.65	Standard
99393	25.4	99.95	100.03	20.65	Standard
99395	18.42	101.55	101.6	15.24	Standard
99399	25.4	101.55	101.6	20.65	Standard
99400	19.69	101.55	101.6	16.51	Standard
99401	15.88	101.55	101.6	12.7	Standard
99409	24	103.89	103.99	19.99	Standard
99412	25.4	104.7	104.78	20.65	Standard
99413	23.19	104.9	105	19.99	Standard
99418	25.4	106.25	106.38	20.65	Standard
99423	23.01	107.34	107.54	19.84	Standard
99424	25.4	107.9	107.95	20.65	Standard
99434	14.96	109.78	110.01	11.38	Standard
99435	16.51	109.91	109.93	12.93	Standard
99437	25.4	111	111.13	20.65	Standard
99438	22.5	111.79	111.99	19.05	Standard
99439	29.01	112.62	112.73	25.4	Standard
99450	25.4	114.2	114.3	20.65	Standard
99452	23.83	114.88	115.01	20.65	Standard
99463	31.75	117.37	117.48	25.4	Standard
99465	15.88	117.37	117.48	11.13	Standard
99468	25.4	119	119.08	20.65	Standard

99471	11	119.89	119.99	8	Standard
99472	24	121.89	122	19.99	Standard
99473	24.99	119.89	119.99	19.99	Standard
99475	19.05	120.55	120.65	12.7	Standard
99481	34.27	87.8	88	29.21	Standard
99482	34.27	127.8	128	29.21	Standard
99487	19.05	123.72	123.83	15.88	Standard
99490	14	124.89	124.99	10.01	Standard
99491	25.3	129.97	130.18	22	Standard
99492	32	124.89	124.99	26.01	Standard
99494	23.83	129.79	129.9	19.05	Standard
99498	22.23	126.95	127	17.48	Standard
99499	25.4	126.95	127	20.65	Standard
99501	17.3	126.95	127	13.72	Standard
99513	25.4	130.05	130.18	20.65	Standard
99525	25.4	133.25	133.35	20.65	Standard
99533	25.4	134.8	134.9	20.5	Standard
99537	25.4	136.42	136.53	20.65	Standard
99547	19.05	138.99	139.09	14.3	Standard
99548	42.88	138.02	138.13	38.1	Standard
99549	25.4	139.65	139.7	20.65	Standard
99550	17.91	139.65	139.7	13.16	Standard
99552	25.4	139.9	140	20.5	Standard
99560	25.4	142.77	142.88	22.23	Standard

99562	19.05	145.44	145.64	14.3	Standard
99571	22.23	144.75	145.01	19.05	Standard
99575	25.4	145.95	146.05	20.65	Standard
99587	31.75	149.12	149.23	25.4	Standard
99595	30	149.76	149.99	26.01	Standard
99596	28.58	150.72	150.83	25.4	Standard
99599	31.75	152.27	152.4	25.4	Standard
99601	19.05	152.27	152.4	12.7	Standard
99605	30	153.87	154	26.01	Standard
99606	30	154.74	154.86	26.01	Standard
99620	27	157.43	157.56	20.65	Standard
99625	31.75	158.62	158.75	26.19	Standard
99630	31.75	159.74	159.99	25.4	Standard
99640	38	169.75	169.88	31.75	Standard
99650	31.75	164.97	165.1	25.4	Standard
99675	27	171.32	171.45	20.65	Standard
99687	32	174.75	175.01	27.99	Standard
99700	31.75	177.67	177.8	25.4	Standard
99721	38	179.76	180.01	32.99	Standard
99725	38.1	184	184.15	31.75	Standard
99726	38	184.73	184.86	32	Standard
99745	25.4	189.08	189.31	20.65	Standard
99750	25.4	190.37	190.5	20.65	Standard
99775	33.35	196.72	196.85	25.4	Standard

99787	38.1	199.87	200.03	34.52	Standard
99799	31.75	201.5	201.63	25.4	Standard
99800	31.75	203.07	203.2	25.4	Standard
99810	10.31	15.82	15.88	7.95	Gold
99811	11.13	19	19.05	7.95	Gold
99812	11.13	22.17	22.23	7.95	Gold
99813	11	24.94	24.99	7.95	Gold
99814	11.13	25.35	25.4	7.95	Gold
99815	11.13	26.92	27	7.95	Gold
99816	11.13	28.52	28.58	7.95	Gold
99817	11.13	31.67	31.75	7.95	Gold
99818	15.88	33.27	33.35	12.7	Gold
99819	15.88	34.82	34.93	12.7	Gold
99820	16	34.93	34.93	13	Gold
99821	17.48	36.37	36.53	14.3	Gold
99822	17.48	38.02	38.1	14.3	Gold
99823	12.7	38.02	38.1	9.53	Gold
99824	17.48	39.6	39.67	14.3	Gold
99825	16	39.93	40.08	13	Gold
99826	17.48	41.2	41.28	14.3	Gold
99827	17.48	44.37	44.45	14.3	Gold
99828	22.23	44.37	44.45	19.05	Gold
99829	17.48	44.73	44.86	14.3	Gold
99830	16.99	44.93	45.01	14	Gold

99831	17.48	45.95	46.05	14.3	Gold
99832	17.48	47.55	47.63	14.3	Gold
99833	17.48	49.12	49.23	14.3	Gold
99834	17.48	50.72	50.8	14.3	Gold
99835	25.4	50.72	50.8	22.23	Gold
99836	23.83	53.95	53.98	19.84	Gold
99837	23.83	57.12	57.15	19.84	Gold
99838	11.13	57.12	57.15	7.95	Gold
99839	23.83	60.3	60.33	19.84	Gold
99840	23.83	63.5	63.5	19.84	Gold
99841	22.99	64.92	65	19.99	Gold
99842	23.83	66.68	66.68	19.84	Gold
99843	23.83	69.72	69.85	19.84	Gold
99844	23.83	69.85	69.85	19.84	Gold
99845	16.66	72.09	72.09	12.7	Gold
99846	23.83	72.97	73.03	19.84	Gold
99847	23.83	74.6	74.63	19.84	Gold
99848	25.4	76.2	76.2	20.65	Gold
99849	25.4	79.25	79.38	20.65	Gold
99850	18.26	82.55	82.55	15.11	Gold
99851	25.4	82.55	82.55	20.65	Gold
99852	25.4	88.9	88.9	20.65	Gold
99853	22.23	95.25	95.25	17.48	Gold
99854	25.4	99.95	100.03	20.65	Gold

99855	25.4	101.55	101.6	20.65	Gold
99856	25.4	114.2	114.3	20.65	Gold
99857	22.23	126.95	127	17.48	Gold
99858	25.4	126.95	127	20.65	Gold
99859	25.4	139.65	139.7	20.65	Gold
99860	11.13	23.06	23.11	7.95	Gold
99861	15.88	56.57	56.64	12.7	Gold
99862	31.75	149.12	149.23	25.4	Gold
99863	22.99	54.91	54.99	19.99	Gold
99864	31.75	177.67	177.8	25.4	Gold
99865	12.7	29.31	29.36	9.53	Gold
99866	12.7	27.94	27.99	9.53	Gold
99868	11.13	25.35	25.4	7.95	Standard
99869	22.99	59.92	59.99	19.99	Gold
99870	22.23	71.83	72.01	19.05	Gold
99872	24.99	84.76	84.89	21.01	Gold
99873	17.5	41.83	42.01	14.3	Gold
99874	25.3	129.97	130	22	Gold
99875	26.01	74.93	75.01	22	Gold
99878	15.88	51.82	51.99	12.7	Gold

Speedi-Sleeve – Metric Size

คุณสมบัติเด่นของ Speedi Sleeve

Related Products

Speedi-Sleeve – Inch Size
