Pulley HiTD

มู่เล่ย์สำหรับสายพานฟันเฟือง ใช้ในงานที่ต้องการความเที่ยงตรงของจังหวะการหมุน (Synchronous Drive) มีทั้งแบบเหล็ก และอลูมิเนียมรองรับโปรไฟล์ MXL, XL, L, H, HTD, T, AT และมาตรฐานอื่น ๆ นิยมใช้ในเครื่องแพ็คกิ้ง เครื่อง CNC เครื่องจักรอาหาร และระบบลำเลียงอัตโนมัติ

จุดเด่น

ควบคุมตำแหน่งได้แม่นยำ ไม่มีการลื่นไถล
เหมาะกับระบบ Automation และเครื่องจักรความเร็วสูง
รับผลิตตามจำนวนฟัน (Number of Teeth) และขนาดเพลา
มีบริการทำ Keyway, Tap เกลียว, และงานปรับแต่งพิเศษ

ขอใบเสนอราคา :

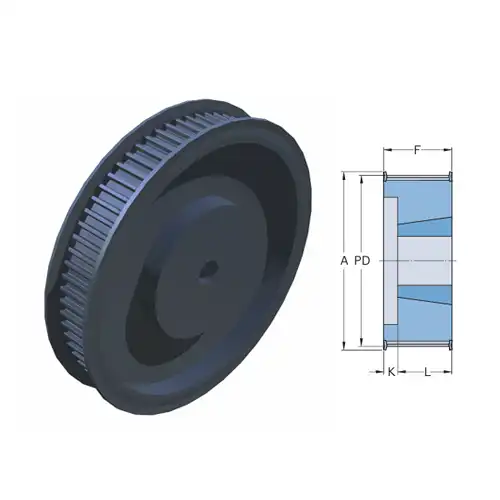

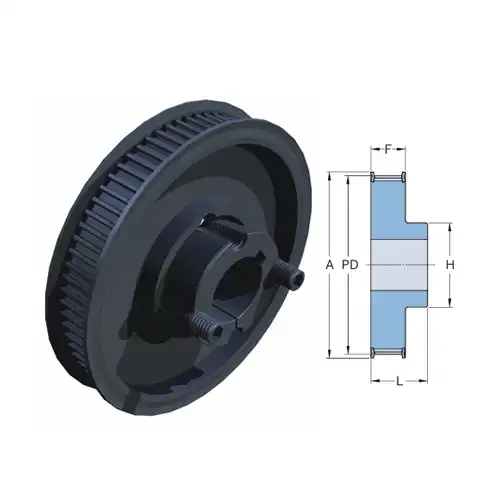

Designation	Pitch diameter (PD)	Outside diameter (OD)	Width over grooves ( L )
Designation	Pitch diameter (PD)	Outside diameter (OD)	Width over grooves ( L )
	[mm]	[mm]	[mm]
PHP 10-3M-09RSB	9.55	8.79	17.5
PHP 10-3M-15RSB	9.55	8.79	26
PHP 112-14M-115RSB	499.11	496.32	133
PHP 112-14M-115TB	499.11	496.32	89
PHP 112-14M-170RSB	499.11	496.32	187
PHP 112-14M-170TB	499.11	496	127
PHP 112-14M-40RSB	499.11	496.32	69
PHP 112-14M-40TB	499.11	496.32	51
PHP 112-14M-55RSB	499.11	496.32	70
PHP 112-14M-55TB	499.11	496.32	51
PHP 112-14M-85RSB	499.11	496.32	102
PHP 112-14M-85TB	499.11	496.32	65
PHP 112-5M-15TB	178.25	177.11	25
PHP 112-8M-20RSB	285.21	283.83	38
PHP 112-8M-30RSB	285.21	283.83	48
PHP 112-8M-30TB	285.21	283.83	45
PHP 112-8M-50RSB	285.21	283.83	60
PHP 112-8M-50TB	285.21	283.83	51
PHP 112-8M-85RSB	285.21	283.83	95
PHP 112-8M-85TB	285.21	283.83	51
PHP 12-3M-09RSB	11.46	10.7	17.5
PHP 12-3M-15RSB	11.46	10.7	26
PHP 12-5M-09RSB	19.1	17.96	20
PHP 12-5M-15RSB	19.1	17.96	26
PHP 12-5M-25RSB	19.1	17.96	36
PHP 136-5M-15TB	216.45	215.31	32
PHP 14-3M-09RSB	13.37	12.61	17.5
PHP 14-3M-15RSB	13.37	12.61	26
PHP 14-5M-09RSB	22.28	21.14	20
PHP 14-5M-15RSB	22.28	21.14	26
PHP 14-5M-25RSB	22.28	21.14	36
PHP 144-14M-115RSB	641.71	638.92	133
PHP 144-14M-115TB	641.71	638.92	102
PHP 144-14M-170RSB	641.71	638.92	187
PHP 144-14M-170TB	641.71	639	127
PHP 144-14M-40RSB	641.71	638.92	69
PHP 144-14M-40TB	641.71	638.92	51
PHP 144-14M-55RSB	641.71	638.92	70
PHP 144-14M-55TB	641.71	638.92	51
PHP 144-14M-85RSB	641.71	638.92	102
PHP 144-14M-85TB	641.71	638.92	65
PHP 144-8M-20RSB	366.69	365.32	38
PHP 144-8M-30RSB	366.69	365.32	48
PHP 144-8M-30TB	366.69	365.32	45
PHP 144-8M-50RSB	366.69	365.32	60
PHP 144-8M-50TB	366.69	365.32	51
PHP 144-8M-85RSB	366.69	365.32	95
PHP 144-8M-85TB	366.69	365.32	89
PHP 15-3M-09RSB	14.32	13.56	17.5
PHP 15-3M-15RSB	14.32	13.56	26
PHP 15-5M-09RSB	23.87	22.73	20
PHP 15-5M-15RSB	23.87	22.73	26
PHP 15-5M-25RSB	23.87	22.73	36
PHP 150-5M-15TB	238.73	237.51	32
PHP 16-3M-09RSB	15.28	14.52	20.6
PHP 16-3M-15RSB	15.28	14.52	26
PHP 16-5M-09RSB	25.46	24.32	20
PHP 16-5M-15RSB	25.46	24.32	26
PHP 16-5M-25RSB	25.46	24.32	36
PHP 168-14M-115RSB	748.66	745.87	133
PHP 168-14M-115TB	748.66	745.87	102
PHP 168-14M-170RSB	748.66	745.87	187
PHP 168-14M-170TB	748.86	746	127
PHP 168-14M-40RSB	748.66	745.87	69
PHP 168-14M-40TB	748.66	745.87	51
PHP 168-14M-55RSB	748.66	745.87	70
PHP 168-14M-55TB	748.66	745.87	51
PHP 168-14M-85RSB	748.66	745.87	102
PHP 168-14M-85TB	748.66	745.87	65
PHP 168-8M-20RSB	427.81	426.44	38
PHP 168-8M-30RSB	427.81	426.44	48
PHP 168-8M-30TB	427.81	426.44	51
PHP 168-8M-50RSB	427.81	426.44	60
PHP 168-8M-50TB	427.81	426.44	51
PHP 168-8M-85RSB	427.81	426.44	95
PHP 168-8M-85TB	427.81	426.44	89
PHP 192-14M-115RSB	855.62	852.82	133
PHP 192-14M-115TB	855.62	852.92	102
PHP 192-14M-170RSB	855.62	852.82	187
PHP 192-14M-170TB	855.62	853	127
PHP 192-14M-40RSB	855.92	852.82	69
PHP 192-14M-40TB	855.62	852.82	51
PHP 192-14M-55RSB	855.62	852.82	70
PHP 192-14M-55TB	855.62	852.82	51
PHP 192-14M-85RSB	855.62	852.82	102
PHP 192-14M-85TB	855.62	852.82	102
PHP 192-8M-20RSB	488.92	487.55	38
PHP 192-8M-30RSB	488.92	487.55	48
PHP 192-8M-30TB	488.92	487.55	65
PHP 192-8M-50RSB	488.92	487.55	60
PHP 192-8M-50TB	488.92	487.55	51
PHP 192-8M-85RSB	488.92	487.55	95
PHP 192-8M-85TB	488.92	487.55	89
PHP 20-3M-09RSB	19.1	18.34	20.6
PHP 20-3M-15RSB	19.1	18.34	26
PHP 20-5M-09RSB	31.83	30.69	22.5
PHP 20-5M-15RSB	31.83	30.69	26
PHP 20-5M-25RSB	31.83	30.69	36
PHP 20-8M-20RSB	50.93	49.56	38
PHP 20-8M-30RSB	50.93	49.56	48
PHP 20-8M-30TB	50.93	49.56	22
PHP 21-3M-09RSB	20.05	19.29	20.6
PHP 21-3M-15RSB	20.05	19.29	26
PHP 21-5M-09RSB	33.42	32.28	22.5
PHP 21-5M-15RSB	33.42	32.28	26
PHP 21-5M-25RSB	33.42	32.28	38
PHP 21-8M-20RSB	53.47	52.1	38
PHP 21-8M-30RSB	53.47	52.1	48
PHP 21-8M-30TB	53.47	52.1	22
PHP 216-14M-115RSB	962.57	959.76	133
PHP 216-14M-115TB	962.57	959.76	102
PHP 216-14M-170RSB	962.57	959.76	187
PHP 216-14M-170TB	962.57	960	127
PHP 216-14M-40RSB	962.57	959.76	69
PHP 216-14M-40TB	962.56	960	51
PHP 216-14M-55RSB	962.57	959.76	70
PHP 216-14M-55TB	962.56	960	51
PHP 216-14M-85RSB	962.57	959.76	102
PHP 216-14M-85TB	962.56	960	102
PHP 22-3M-09RSB	21.01	20.25	20.6
PHP 22-3M-15RSB	21.01	20.25	26
PHP 22-5M-09RSB	35.01	33.87	22.5
PHP 22-5M-15RSB	35.01	33.87	26
PHP 22-5M-25RSB	35.01	33.87	38
PHP 22-8M-20RSB	56.02	54.65	38
PHP 22-8M-20TB	56.02	54.65	22
PHP 22-8M-30RSB	56.02	54.65	48
PHP 22-8M-30TB	56.02	54.65	22
PHP 22-8M-50RSB	56.02	54.65	70
PHP 22-8M-85RSB	56.02	54.65	105
PHP 23-8M-20RSB	58.57	57.2	38
PHP 23-8M-30RSB	57.57	57.2	48
PHP 23-8M-30TB	58.57	57.2	22
PHP 23-8M-50RSB	58.57	57.2	70
PHP 23-8M-85RSB	58.57	57.2	105
PHP 24-3M-09RSB	22.92	22.16	20.6
PHP 24-3M-15RSB	22.92	22.16	26
PHP 24-5M-09RSB	38.2	37.06	22.5
PHP 24-5M-15RSB	38.2	37.06	28
PHP 24-5M-25RSB	38.2	37.06	38
PHP 24-8M-20RSB	61.12	59.75	38
PHP 24-8M-20TB	61.12	59.75	22
PHP 24-8M-30RSB	61.12	59.75	48
PHP 24-8M-30TB	61.12	59.75	22
PHP 24-8M-50RSB	61.12	59.75	70
PHP 24-8M-50TB	61.12	59.75	22
PHP 24-8M-85RSB	61.12	59.75	105
PHP 24-8M-85TB	61.12	59.75	22
PHP 25-8M-20RSB	63.66	62.28	38
PHP 25-8M-30RSB	63.66	62.28	48
PHP 25-8M-30TB	63.66	62.29	22
PHP 25-8M-50RSB	63.66	62.28	70
PHP 25-8M-85RSB	63.66	62.28	105
PHP 26-3M-09RSB	24.83	24.07	20.6
PHP 26-3M-15RSB	24.83	24.07	26
PHP 26-5M-09RSB	41.38	40.24	22.5
PHP 26-5M-15RSB	41.38	40.24	28
PHP 26-5M-25RSB	41.38	40.24	38
PHP 26-8M-20RSB	66.21	64.84	38
PHP 26-8M-20TB	66.21	64.84	22
PHP 26-8M-30RSB	66.21	64.84	48
PHP 26-8M-30TB	66.21	64.84	22
PHP 26-8M-50RSB	66.21	64.84	70
PHP 26-8M-50TB	66.21	64.84	22
PHP 26-8M-85RSB	66.21	64.84	105
PHP 26-8M-85TB	66.21	64.84	22
PHP 27-8M-20RSB	68.75	67.39	38
PHP 27-8M-30RSB	68.75	67.39	48
PHP 27-8M-30TB	68.75	67.38	22
PHP 27-8M-50RSB	68.75	67.39	70
PHP 27-8M-50TB	68.75	67.38	22
PHP 27-8M-85RSB	68.75	67.39	105
PHP 28-14M-115RSB	124.78	122.12	148
PHP 28-14M-115TB	124.78	122.12	45
PHP 28-14M-170RSB	124.78	122.12	202
PHP 28-14M-40RSB	124.78	122.12	69
PHP 28-14M-40TB	124.78	122.12	32
PHP 28-14M-55RSB	124.78	122.12	85
PHP 28-14M-55TB	124.78	122.12	32
PHP 28-14M-85RSB	124.78	122.12	117
PHP 28-14M-85TB	124.78	122.12	45
PHP 28-3M-09RSB	26.74	25.98	20.6
PHP 28-3M-15RSB	26.74	25.98	26
PHP 28-5M-09RSB	44.56	43.42	22.5
PHP 28-5M-15RSB	44.56	43.42	28
PHP 28-5M-25RSB	44.56	43.42	38
PHP 28-8M-20RSB	71.3	70.08	38
PHP 28-8M-20TB	71.3	70.08	22
PHP 28-8M-30RSB	71.3	70.08	48
PHP 28-8M-30TB	71.3	70.08	25
PHP 28-8M-50RSB	71.3	70.08	70
PHP 28-8M-50TB	71.3	70.08	22
PHP 28-8M-85RSB	71.3	70.08	105
PHP 28-8M-85TB	71.3	70.08	22
PHP 29-14M-115RSB	129.23	126.57	148
PHP 29-14M-115TB	129.23	126.57	45
PHP 29-14M-170RSB	129.23	126.57	202
PHP 29-14M-40RSB	129.23	126.57	69
PHP 29-14M-40TB	129.23	126.57	32
PHP 29-14M-55RSB	129.23	126.57	85
PHP 29-14M-55TB	129.23	126.57	32
PHP 29-14M-85RSB	129.23	126.57	117
PHP 29-14M-85TB	129.23	126.57	45
PHP 29-8M-20RSB	73.85	72.62	38
PHP 30-14M-115RSB	133.69	130.99	148
PHP 30-14M-115TB	133.69	130.99	45
PHP 30-14M-170RSB	133.69	130.99	202
PHP 30-14M-40RSB	133.69	130.99	69
PHP 30-14M-40TB	133.69	130.99	32
PHP 30-14M-55RSB	133.69	130.99	85
PHP 30-14M-55TB	133.69	130.99	45
PHP 30-14M-85RSB	133.69	130.99	117
PHP 30-14M-85TB	133.69	130.99	45
PHP 30-3M-09RSB	28.65	27.89	20.6
PHP 30-3M-15RSB	28.65	27.89	26
PHP 30-5M-09RSB	47.75	46.6	22.5
PHP 30-5M-15RSB	47.75	46.6	28
PHP 30-5M-25RSB	47.75	46.6	38
PHP 30-8M-20RSB	76.39	75.13	38
PHP 30-8M-20TB	76.39	75.13	22
PHP 30-8M-30RSB	76.39	75.13	48
PHP 30-8M-30TB	76.39	75.13	38
PHP 30-8M-50RSB	76.39	75.13	70
PHP 30-8M-50TB	76.39	75.13	25
PHP 30-8M-85RSB	76.39	75.13	105
PHP 30-8M-85TB	76.39	75.13	22
PHP 31-8M-30RSB	78.94	77.65	48
PHP 31-8M-30TB	78.94	77.57	38
PHP 31-8M-50RSB	78.94	77.65	70
PHP 31-8M-50TB	78.94	77.57	25
PHP 31-8M-85RSB	78.94	77.65	105
PHP 31-AT10-22RSB	70.03	68.15	31
PHP 32-14M-115RSB	142.6	139.88	148
PHP 32-14M-115TB	142.6	139.88	45
PHP 32-14M-170RSB	142.6	139.88	202
PHP 32-14M-40RSB	142.6	139.88	69
PHP 32-14M-40TB	142.6	139.88	32
PHP 32-14M-55RSB	142.6	139.88	85
PHP 32-14M-55TB	142.6	139.88	45
PHP 32-14M-85RSB	142.6	139.88	117
PHP 32-14M-85TB	142.6	139.88	45
PHP 32-3M-09RSB	30.56	29.8	20.6
PHP 32-3M-15RSB	30.56	29.8	26
PHP 32-5M-09RSB	50.93	49.79	22.5
PHP 32-5M-15RSB	50.93	49.79	28
PHP 32-5M-25RSB	50.93	49.79	38
PHP 32-8M-20RSB	81.49	80.16	38
PHP 32-8M-20TB	81.49	80.16	25
PHP 32-8M-30RSB	81.49	80.16	48
PHP 32-8M-30TB	81.49	80.16	38
PHP 32-8M-50RSB	81.49	80.16	70
PHP 32-8M-50TB	81.49	80.16	25
PHP 32-8M-85RSB	81.49	80.16	105
PHP 33-8M-30RSB	84.03	82.68	48
PHP 33-8M-30TB	84.03	82.66	38
PHP 33-8M-50RSB	84.03	82.68	70
PHP 33-8M-50TB	84.03	82.66	25
PHP 33-8M-85RSB	84.03	82.68	105
PHP 33-8M-85TB	84.03	82.66	22
PHP 34-14M-115RSB	151.52	148.79	148
PHP 34-14M-115TB	151.52	148.79	45
PHP 34-14M-170RSB	151.52	148.79	202
PHP 34-14M-40RSB	151.52	148.79	69
PHP 34-14M-40TB	151.52	148.79	45
PHP 34-14M-55RSB	151.52	148.79	85
PHP 34-14M-55TB	151.51	148.79	45
PHP 34-14M-85RSB	151.52	148.79	117
PHP 34-14M-85TB	151.51	148.79	45
PHP 34-5M-15TB	54.11	52.97	22
PHP 34-8M-20RSB	86.58	85.22	38
PHP 34-8M-20TB	86.58	85.22	25
PHP 34-8M-30RSB	86.58	85.22	48
PHP 34-8M-30TB	86.58	85.22	38
PHP 34-8M-50RSB	86.58	85.22	70
PHP 34-8M-50TB	86.58	85.22	25
PHP 34-8M-85RSB	86.58	85.22	105
PHP 34-8M-85TB	86.58	85.22	38
PHP 35-14M-115TB	155.97	153.18	51
PHP 35-14M-170TB	155.97	153.18	76
PHP 35-14M-40TB	155.97	153.18	45
PHP 35-14M-55TB	155.97	153.18	45
PHP 35-14M-85TB	155.97	153.18	51
PHP 35-8M-30RSB	89.13	87.76	48
PHP 35-8M-30TB	89.13	87.75	38
PHP 35-8M-50RSB	89.13	87.76	70
PHP 35-8M-50TB	89.13	87.75	25
PHP 35-8M-85RSB	89.13	87.76	105
PHP 35-8M-85TB	89.13	87.75	38
PHP 36-14M-115RSB	160.43	157.68	148
PHP 36-14M-115TB	160.43	157.68	51
PHP 36-14M-170RSB	160.43	157.68	202
PHP 36-14M-170TB	160.43	157.68	76
PHP 36-14M-40RSB	160.43	157.68	69
PHP 36-14M-40TB	160.43	157.68	45
PHP 36-14M-55RSB	160.43	157.68	85
PHP 36-14M-55TB	160.43	157.68	45
PHP 36-14M-85RSB	160.43	157.68	117
PHP 36-14M-85TB	160.43	157.68	51
PHP 36-3M-09RSB	34.38	33.62	22.2
PHP 36-3M-15RSB	34.38	33.62	30
PHP 36-5M-09RSB	57.3	56.16	22.5
PHP 36-5M-15RSB	57.3	56.16	28
PHP 36-5M-15TB	57.3	56.16	22
PHP 36-5M-25RSB	57.3	56.16	38
PHP 36-8M-20RSB	91.67	90.3	38
PHP 36-8M-20TB	91.67	90.3	25
PHP 36-8M-30RSB	91.67	90.3	48
PHP 36-8M-30TB	91.67	90.3	38
PHP 36-8M-50RSB	91.67	90.3	70
PHP 36-8M-50TB	91.67	90.3	25
PHP 36-8M-85RSB	91.67	90.3	105
PHP 36-8M-85TB	91.67	90.3	38
PHP 38-14M-115RSB	169.34	166.6	148
PHP 38-14M-115TB	169.34	166.6	51
PHP 38-14M-170RSB	169.34	166.6	202
PHP 38-14M-170TB	169.34	167	76
PHP 38-14M-40RSB	169.34	166.6	69
PHP 38-14M-40TB	169.34	166.6	45
PHP 38-14M-55RSB	169.34	166.6	85
PHP 38-14M-55TB	169.34	166.6	45
PHP 38-14M-85RSB	169.34	166.6	117
PHP 38-14M-85TB	169.34	166.6	51
PHP 38-5M-15TB	60.48	59.34	22
PHP 38-8M-20RSB	96.77	95.39	38
PHP 38-8M-20TB	96.77	95.39	25
PHP 38-8M-30RSB	96.77	95.39	48
PHP 38-8M-30TB	96.77	95.39	38
PHP 38-8M-50RSB	96.77	95.39	70
PHP 38-8M-50TB	96.77	95.39	25
PHP 38-8M-85RSB	96.77	95.39	105
PHP 38-8M-85TB	96.77	95.39	38
PHP 40-14M-115RSB	178.25	175.49	148
PHP 40-14M-115TB	178.25	175.49	51
PHP 40-14M-170RSB	178.25	175.49	202
PHP 40-14M-170TB	178.25	175	76
PHP 40-14M-40RSB	178.25	175.49	69
PHP 40-14M-40TB	178.25	175.49	45
PHP 40-14M-55RSB	178.25	175.49	85
PHP 40-14M-55TB	178.25	175.49	45
PHP 40-14M-85RSB	178.25	175.49	117
PHP 40-14M-85TB	178.25	175.49	51
PHP 40-3M-09RSB	38.2	37.44	22.2
PHP 40-3M-15RSB	38.2	37.44	30
PHP 40-5M-09RSB	63.66	62.52	22.5
PHP 40-5M-15RSB	63.66	62.52	28
PHP 40-5M-15TB	63.66	62.52	22
PHP 40-5M-25RSB	63.66	62.52	38
PHP 40-8M-20RSB	101.86	100.49	38
PHP 40-8M-20TB	101.86	100.49	25
PHP 40-8M-30RSB	101.86	100.49	48
PHP 40-8M-30TB	101.86	100.49	38
PHP 40-8M-50RSB	101.86	100.49	70
PHP 40-8M-50TB	101.86	100.49	32
PHP 40-8M-85RSB	101.86	100.49	105
PHP 40-8M-85TB	101.86	100.49	32
PHP 42-14M-115TB	187.17	184.37	76
PHP 42-14M-170TB	187.17	184.37	89
PHP 42-14M-40TB	187.17	184.37	45
PHP 42-14M-55TB	187.17	184.37	51
PHP 42-14M-85TB	181.17	184.37	76
PHP 42-8M-20TB	106.95	105.58	25
PHP 42-8M-30RSB	106.95	105.58	48
PHP 42-8M-30TB	106.95	105.58	38
PHP 42-8M-50RSB	104.41	103.03	70
PHP 42-8M-50TB	106.95	105.58	32
PHP 42-8M-85RSB	106.95	105.58	105
PHP 42-8M-85TB	106.95	105.58	32
PHP 44-14M-115RSB	196.08	193.28	148
PHP 44-14M-115TB	196.08	193.28	76
PHP 44-14M-170RSB	196.08	193.28	202
PHP 44-14M-170TB	196.08	193	89
PHP 44-14M-40RSB	196.08	193.28	69
PHP 44-14M-40TB	196.08	193.28	51
PHP 44-14M-55RSB	196.08	193.28	85
PHP 44-14M-55TB	196.08	193.28	51
PHP 44-14M-85RSB	196.08	193.28	117
PHP 44-14M-85TB	196.08	193.28	76
PHP 44-3M-09RSB	42.02	41.26	22.2
PHP 44-3M-15RSB	42.02	41.26	30
PHP 44-5M-09RSB	70.03	68.89	25.5
PHP 44-5M-15RSB	70.03	68.89	30
PHP 44-5M-15TB	70.03	68.89	22
PHP 44-5M-25RSB	70.03	68.89	40
PHP 44-8M-20RSB	112.05	110.67	38
PHP 44-8M-20TB	112.05	110.67	32
PHP 44-8M-30RSB	112.05	110.67	48
PHP 44-8M-30TB	112.05	110.67	32
PHP 44-8M-50RSB	112.05	110.67	70
PHP 44-8M-50TB	112.05	110.67	32
PHP 44-8M-85RSB	112.05	110.67	105
PHP 44-8M-85TB	112.05	110.67	32
PHP 45-14M-115TB	200.54	197.74	76
PHP 45-14M-170TB	200.54	197.74	89
PHP 45-14M-40TB	200.54	197.74	51
PHP 45-14M-55TB	200.54	197.74	51
PHP 45-14M-85TB	200.54	197.74	76
PHP 45-8M-30RSB	114.59	113.22	48
PHP 45-8M-30TB	114.59	113.22	32
PHP 45-8M-50RSB	114.59	113.22	70
PHP 45-8M-50TB	114.59	113.22	32
PHP 45-8M-85RSB	114.59	113.22	105
PHP 45-8M-85TB	114.59	113.22	32
PHP 48-14M-115RSB	213.9	211.11	148
PHP 48-14M-115TB	213.9	211.11	76
PHP 48-14M-170RSB	213.9	211.11	202
PHP 48-14M-170TB	213.9	211	89
PHP 48-14M-40RSB	213.9	211.11	69
PHP 48-14M-40TB	213.9	211.11	51
PHP 48-14M-55RSB	213.9	211.11	70
PHP 48-14M-55TB	213.9	211.11	51
PHP 48-14M-85RSB	213.9	211.11	117
PHP 48-14M-85TB	213.9	211.11	76
PHP 48-3M-09RSB	45.84	45.08	22.2
PHP 48-3M-15RSB	45.84	45.08	30
PHP 48-5M-09RSB	76.39	75.25	25.5
PHP 48-5M-15RSB	76.39	75.25	30
PHP 48-5M-15TB	76.39	75.25	25
PHP 48-5M-25RSB	76.39	72.25	40
PHP 48-8M-20RSB	122.23	120.86	38
PHP 48-8M-20TB	122.23	120.86	32
PHP 48-8M-30RSB	122.23	120.86	48
PHP 48-8M-30TB	122.23	120.86	32
PHP 48-8M-50RSB	122.23	120.86	70
PHP 48-8M-50TB	122.23	120.86	32
PHP 48-8M-85RSB	122.23	120.86	105
PHP 48-8M-85TB	122.23	120.86	45
PHP 50-14M-115TB	222.82	220.02	89
PHP 50-14M-170TB	222.82	220.02	89
PHP 50-14M-40TB	222.82	220.02	51
PHP 50-14M-55TB	228.82	220.02	51
PHP 50-14M-85TB	222.82	220.02	65
PHP 50-8M-30RSB	127.32	125.95	48
PHP 50-8M-30TB	127.32	125.95	32
PHP 50-8M-50RSB	124.78	123.41	70
PHP 50-8M-50TB	127.32	125.95	32
PHP 50-8M-85RSB	127.32	125.95	105
PHP 50-8M-85TB	127.32	125.95	45
PHP 52-8M-30RSB	132.42	131.05	48
PHP 52-8M-30TB	132.42	131.04	32
PHP 52-8M-50RSB	127.32	125.95	70
PHP 52-8M-50TB	132.42	131.04	32
PHP 52-8M-85RSB	132.42	131.05	105
PHP 52-8M-85TB	132.42	131.04	45
PHP 56-14M-115RSB	249.55	246.76	148
PHP 56-14M-115TB	249.55	246.76	89
PHP 56-14M-170RSB	249.55	246.76	202
PHP 56-14M-170TB	249.55	247	89
PHP 56-14M-40RSB	249.55	246.76	69
PHP 56-14M-40TB	249.55	246.76	51
PHP 56-14M-55RSB	249.55	246.76	70
PHP 56-14M-55TB	249.55	246.76	51
PHP 56-14M-85RSB	249.55	246.76	102
PHP 56-14M-85TB	249.55	246.76	65
PHP 56-5M-15TB	89.13	87.99	25
PHP 56-8M-20RSB	142.6	141.23	38
PHP 56-8M-20TB	142.6	141.23	32
PHP 56-8M-30RSB	142.6	141.23	48
PHP 56-8M-30TB	142.6	141.23	32
PHP 56-8M-50RSB	142.6	141.23	60
PHP 56-8M-50TB	142.6	141.23	45
PHP 56-8M-85RSB	142.6	141.23	105
PHP 56-8M-85TB	142.6	141.23	45
PHP 58-8M-30TB	147.7	146.32	32
PHP 58-8M-50TB	147.7	146.32	45
PHP 58-8M-85TB	147.7	146.32	45
PHP 60-14M-115TB	267.38	264.59	89
PHP 60-14M-170TB	267.38	264.59	114
PHP 60-14M-40TB	267.38	264.59	51
PHP 60-14M-55TB	267.38	264.59	51
PHP 60-14M-85TB	267.38	264.59	65
PHP 60-3M-09RSB	57.3	56.54	22.2
PHP 60-3M-15RSB	57.3	56.54	30
PHP 60-5M-09RSB	95.49	94.35	25.5
PHP 60-5M-15RSB	95.49	94.35	30
PHP 60-5M-25RSB	95.49	94.35	40
PHP 60-8M-20TB	152.79	151.42	32
PHP 60-8M-30RSB	152.79	151.42	48
PHP 60-8M-30TB	152.79	151.42	45
PHP 60-8M-50RSB	152.79	151.42	60
PHP 60-8M-50TB	152.79	151.42	45
PHP 60-8M-85RSB	152.79	151.42	95
PHP 60-8M-85TB	152.79	151.42	45
PHP 64-14M-115RSB	285.21	282.41	133
PHP 64-14M-115TB	285.21	282.41	89
PHP 64-14M-170RSB	285.21	282.41	202
PHP 64-14M-170TB	285.21	282	114
PHP 64-14M-40RSB	285.21	282.41	69
PHP 64-14M-40TB	285.21	282.41	51
PHP 64-14M-55RSB	285.21	282.41	70
PHP 64-14M-55TB	285.21	282.41	51
PHP 64-14M-85RSB	285.21	282.41	102
PHP 64-14M-85TB	285.21	282.41	65
PHP 64-5M-15TB	101.86	100.72	25
PHP 64-8M-20RSB	162.97	161.6	38
PHP 64-8M-20TB	162.97	161.6	32
PHP 64-8M-30RSB	162.97	161.6	48
PHP 64-8M-30TB	162.97	161.6	45
PHP 64-8M-50RSB	162.97	161.6	60
PHP 64-8M-50TB	162.97	161.6	45
PHP 64-8M-85RSB	162.97	161.6	95
PHP 64-8M-85TB	162.97	161.6	45
PHP 72-14M-115RSB	320.86	318.06	133
PHP 72-14M-115TB	320.86	318.06	89
PHP 72-14M-170RSB	320.86	318.06	187
PHP 72-14M-170TB	320.86	318	114
PHP 72-14M-40RSB	320.86	318.06	69
PHP 72-14M-40TB	320.86	318.06	51
PHP 72-14M-55RSB	320.86	318.06	70
PHP 72-14M-55TB	320.86	318.06	51
PHP 72-14M-85RSB	320.86	318.06	102
PHP 72-14M-85TB	320.86	318.06	65
PHP 72-3M-09RSB	68.75	67.99	22.2
PHP 72-3M-15RSB	68.75	67.99	30
PHP 72-5M-09RSB	114.59	113.45	25.5
PHP 72-5M-15RSB	114.59	113.45	30
PHP 72-5M-15TB	114.59	113.45	25
PHP 72-5M-25RSB	114.59	113.45	40
PHP 72-8M-20RSB	183.35	181.97	38
PHP 72-8M-20TB	183.35	181.97	32
PHP 72-8M-30RSB	183.35	181.97	48
PHP 72-8M-30TB	183.35	181.97	45
PHP 72-8M-50RSB	183.35	181.97	60
PHP 72-8M-50TB	183.35	181.97	45
PHP 72-8M-85RSB	183.35	181.97	95
PHP 72-8M-85TB	183.35	181.97	51
PHP 80-14M-115RSB	356.51	353.71	133
PHP 80-14M-115TB	356.51	353.71	89
PHP 80-14M-170RSB	356.51	353.71	187
PHP 80-14M-170TB	356.51	354	114
PHP 80-14M-40RSB	356.51	353.71	69
PHP 80-14M-40TB	356.51	353.71	51
PHP 80-14M-55RSB	356.51	353.71	70
PHP 80-14M-55TB	356.51	353.71	51
PHP 80-14M-85RSB	356.51	353.71	102
PHP 80-14M-85TB	356.51	353.71	65
PHP 80-5M-15TB	127.32	126.18	25
PHP 80-5M-25RSB	127.32	126.18	40
PHP 80-8M-20RSB	203.72	202.35	38
PHP 80-8M-20TB	203.72	202.35	32
PHP 80-8M-30RSB	203.72	202.35	48
PHP 80-8M-30TB	203.72	202.35	45
PHP 80-8M-50RSB	203.72	202.35	60
PHP 80-8M-50TB	203.72	202.35	45
PHP 80-8M-85RSB	203.72	202.35	95
PHP 80-8M-85TB	203.72	202.35	51

Related Products

Pulleys Timing belt Classical

Pulleys Timing belt – Pulley Classical

Pulley Metric

Pulleys Timing belt – Pulley Metric
