Ball bearing unit for high temperature

Ball Bearing Unit สำหรับงานอุณหภูมิสูง (High Temperature Ball Bearing Units) ออกแบบพิเศษให้สามารถทำงานในสภาวะความร้อนสูงอย่างต่อเนื่อง โดยใช้วัสดุและจาระบีทนความร้อน พร้อมโครงสร้างตัวเรือนที่ช่วยระบายความร้อนได้ดี เหมาะสำหรับเตาอบอุตสาหกรรม เครื่องอบแห้ง ระบบสายพานลำเลียง และเครื่องจักรในอุตสาหกรรมอาหารหรือเหล็ก ช่วยเพิ่มความน่าเชื่อถือและยืดอายุการใช้งานของเครื่องจักร

ลักษณะพิเศษ

รองรับ อุณหภูมิสูงต่อเนื่อง ด้วยวัสดุและจาระบีพิเศษ
ตัวเรือนลูกปืนช่วย ระบายความร้อนและลดการสึกหรอ
เหมาะสำหรับ เตาอบอุตสาหกรรม ระบบลำเลียง และเครื่องจักรที่มีความร้อนสูง

รหัสต่อท้าย (Suffix) ที่พบได้

VA201 – สำหรับอุณหภูมิสูงมากถึง 250 องศาเซลเซียส พร้อมแผ่นกันฝุ่น
VA208 – ออกแบบสำหรับงานอุณหภูมิสูงมากถึง 350 องศาเซลเซียส ในมอเตอร์ไฟฟ้า
VA228 – สำหรับงานเตาอบและอุณหภูมิสูงมากถึง 350 องศาเซลเซียส

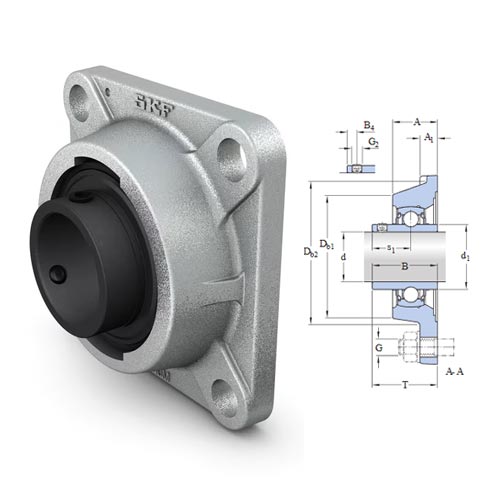

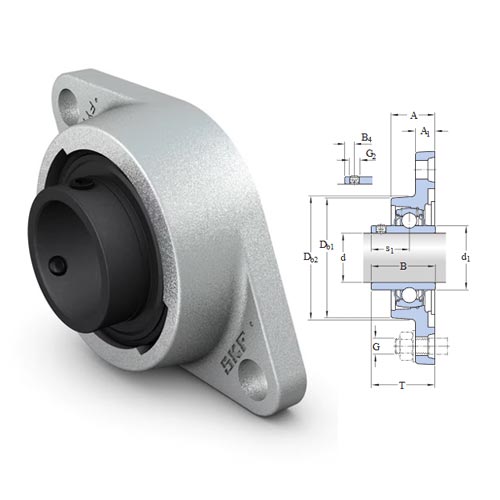

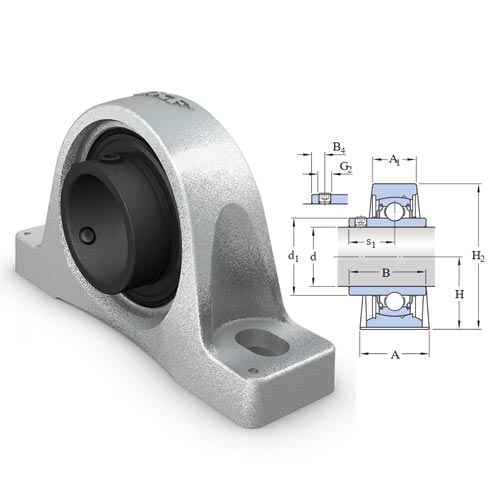

UC / YAR Series – รุ่นลูกปืนที่ใช้ในชุด Ball Bearing Unit สำหรับงานอุตสาหกรรม

ขอใบเสนอราคา :

Designation	Shaft diameter	Bore diameter [d]	Outside diameter [D]	Width [B]	Basic dynamic load rating	Limiting speed	Link
Designation	Shaft diameter	Bore diameter [d]	Outside diameter [D]	Width [B]	Basic dynamic load rating	Limiting speed	Link
YAR 204-012-2F/VA228	19.05	19	47		12.7	260
YAR 204-012-2F/VA201	19.05	19	47		12.7	130
SY 3/4 TF/VA228	19.05				12.7	260
FYTB 3/4 TF/VA228	19.05				12.7	260
FY 3/4 TF/VA228	19.05				12.7	260
FY 3/4 TF/VA201	19.05				12.7	130
SY 3/4 TF/VA201	19.05				12.7	130
FYTB 3/4 TF/VA201	19.05				12.7	130
YAR 204-2F/VA228	20.00	20	47		12.7	260
YAR 204-2F/VA201	20.00	20	47		12.7	130
FYTB 20 TF/VA228	20.00				12.7	260
FY 20 TF/VA228	20.00				12.7	260
SY 20 TF/VA228	20.00				12.7	260
FY 20 TF/VA201	20.00				12.7	130
SY 20 TF/VA201	20.00				12.7	130
FYTB 20 TF/VA201	20.00				12.7	130
YAR 205-2F/VA228	25.00	25	52		14.0	230
YAR 205-2F/VA201	25.00	25	52		14.0	110
FYTB 25 TF/VA228	25.00				14.0	230
SY 25 TF/VA228	25.00				14.0	230
FY 25 TF/VA228	25.00				14.0	230
SY 25 TF/VA201	25.00				14.0	110
FY 25 TF/VA201	25.00				14.0	110
FYTB 25 TF/VA201	25.00				14.0	110
YAR 205-100-2F/VA228	25.40	25	52		14.0	230
YAR 205-100-2F/VA201	25.40	25	52		14.0	110
SY 1. TF/VA228	25.40				14.0	230
FY 1. TF/VA228	25.40				14.0	230
FYTB 1. TF/VA228	25.40				14.0	230
FY 1. TF/VA201	25.40				14.0	110
FYTB 1. TF/VA201	25.40				14.0	110
SY 1. TF/VA201	25.40				14.0	110
YAR 206-2F/VA228	30.00	30	62		19.5	190
YAR 206-2F/VA201	30.00	30	62		19.5	90
FY 30 TF/VA228	30.00				19.5	190
FYTB 30 TF/VA228	30.00				19.5	190
SY 30 TF/VA228	30.00				19.5	190
FY 30 TF/VA201	30.00				19.5	90
SY 30 TF/VA201	30.00				19.5	90
FYTB 30 TF/VA201	30.00				19.5	90
YAR 206-103-2F/VA228	30.16	30	62		19.5	190
YAR 206-103-2F/VA201	30.16	30	62		19.5	90
FY 1.3/16 TF/VA228	30.16				19.5	190
SY 1.3/16 TF/VA228	30.16				19.5	190
SY 1.3/16 TF/VA201	30.16				19.5	90
FY 1.3/16 TF/VA201	30.16				19.5	90
YAR 207-104-2F/VA228	31.75	31	72		25.5	160
YAR 207-104-2F/VA201	31.75	31	72		25.5	80
FYTB 1.1/4 TF/VA228	31.75				25.5	160
FY 1.1/4 TF/VA228	31.75				25.5	160
SY 1.1/4 TF/VA228	31.75				25.5	160
FY 1.1/4 TF/VA201	31.75				25.5	80
SY 1.1/4 TF/VA201	31.75				25.5	80
FYTB 1.1/4 TF/VA201	31.75				25.5	80
YAR 207-106-2F/VA228	34.93	34	72		25.5	160
YAR 207-106-2F/VA201	34.93	34	72		25.5	80
SY 1.3/8 TF/VA228	34.93				25.5	160
FYTB 1.3/8 TF/VA228	34.93				25.5	160
FYTB 1.3/8 TF/VA201	34.93				25.5	80
YAR 207-2F/VA228	35.00	35	72		25.5	160
YAR 207-2F/VA201	35.00	35	72		25.5	80
SY 35 TF/VA228	35.00				25.5	160
FY 35 TF/VA228	35.00				25.5	160
FYTB 35 TF/VA228	35.00				25.5	160
SY 35 TF/VA201	35.00				25.5	80
FY 35 TF/VA201	35.00				25.5	80
FYTB 35 TF/VA201	35.00				25.5	80
YAR 207-107-2F/VA228	36.51	36	72		25.5	160
YAR 207-107-2F/VA201	36.51	36	72		25.5	80
FY 1.7/16 TF/VA228	36.51				25.5	160
SY 1.7/16 TF/VA228	36.51				25.5	160
SY 1.7/16 TF/VA201	36.51				25.5	80
FY 1.7/16 TF/VA201	36.51				25.5	80
YAR 208-108-2F/VA228	38.10	38	80		30.7	150
YAR 208-108-2F/VA201	38.10	38	80		30.7	70
SY 1.1/2 TF/VA228	38.10				30.7	150
FY 1.1/2 TF/VA228	38.10				30.7	150
FYTB 1.1/2 TF/VA228	38.10				30.7	150
SY 1.1/2 TF/VA201	38.10				30.7	70
FYTB 1.1/2 TF/VA201	38.10				30.7	70
FY 1.1/2 TF/VA201	38.10				30.7	70
YAR 208-2F/VA228	40.00	40	80		30.7	150
YAR 208-2F/VA201	40.00	40	80		30.7	70
SY 40 TF/VA228	40.00				30.7	150
FYTB 40 TF/VA228	40.00				30.7	150
FY 40 TF/VA228	40.00				30.7	150
FYTB 40 TF/VA201	40.00				30.7	70
FY 40 TF/VA201	40.00				30.7	70
SY 40 TF/VA201	40.00				30.7	70
YAR 209-111-2F/VA228	42.86	42	85		33.2	130
YAR 209-111-2F/VA201	42.86	42	85		33.2	60
FYTB 1.11/16 TF/VA228	42.86				33.2	130
FY 1.11/16 TF/VA228	42.86				33.2	130
SY 1.11/16 TF/VA228	42.86				33.2	130
SY 1.11/16 TF/VA201	42.86				33.2	60
FY 1.11/16 TF/VA201	42.86				33.2	60
FYTB 1.11/16 TF/VA201	42.86				33.2	60
YAR 209-112-2F/VA228	44.45	44	85		33.2	130
YAR 209-112-2F/VA201	44.45	44	85		33.2	60
SY 1.3/4 TF/VA228	44.45				33.2	130
FY 1.3/4 TF/VA228	44.45				33.2	130
FYTB 1.3/4 TF/VA228	44.45				33.2	130
FY 1.3/4 TF/VA201	44.45				33.2	60
SY 1.3/4 TF/VA201	44.45				33.2	60
FYTB 1.3/4 TF/VA201	44.45				33.2	60
YAR 209-2F/VA228	45.00	45	85		33.2	130
YAR 209-2F/VA201	45.00	45	85		33.2	60
FY 45 TF/VA228	45.00				33.2	130
FYTB 45 TF/VA228	45.00				33.2	130
SY 45 TF/VA228	45.00				33.2	130
FYTB 45 TF/VA201	45.00				33.2	60
FY 45 TF/VA201	45.00				33.2	60
SY 45 TF/VA201	45.00				33.2	60
YAR 210-115-2F/VA228	49.21	49	90		35.1	120
YAR 210-115-2F/VA201	49.21	49	90		35.1	60
FY 1.15/16 TF/VA228	49.21				35.1	120
FYTB 1.15/16 TF/VA228	49.21				35.1	120
SY 1.15/16 TF/VA228	49.21				35.1	120
FYTB 1.15/16 TF/VA201	49.21				35.1	60
FY 1.15/16 TF/VA201	49.21				35.1	60
SY 1.15/16 TF/VA201	49.21				35.1	60
YAR 210-2F/VA228	50.00	50	90		35.1	120
YAR 210-2F/VA201	50.00	50	90		35.1	60
FY 50 TF/VA228	50.00				35.1	120
SY 50 TF/VA228	50.00				35.1	120
FYTB 50 TF/VA228	50.00				35.1	120
FY 50 TF/VA201	50.00				35.1	60
SY 50 TF/VA201	50.00				35.1	60
FYTB 50 TF/VA201	50.00				35.1	60
YAR 211-200-2F/VA228	50.80	50	100		43.6	110
YAR 211-200-2F/VA201	50.80	50	100		43.6	50
FYTB 2. TF/VA228	50.80				43.6	110
FY 2. TF/VA228	50.80				43.6	110
SY 2. TF/VA228	50.80				43.6	110
SY 2. TF/VA201	50.80				43.6	50
FY 2. TF/VA201	50.80				43.6	50
FYTB 2. TF/VA201	50.80				43.6	50
YAR 211-2F/VA228	55.00	55	100		43.6	110
YAR 211-2F/VA201	55.00	55	100		43.6	50
FY 55 TF/VA228	55.00				43.6	110
FYTB 55 TF/VA228	55.00				43.6	110
SY 55 TF/VA228	55.00				43.6	110
FY 55 TF/VA201	55.00				43.6	50
SY 55 TF/VA201	55.00				43.6	50
YAR 211-203-2F/VA228	55.56	55	100		43.6	110
YAR 211-203-2F/VA201	55.56	55	100		43.6	50
FY 2.3/16 TF/VA228	55.56				43.6	110
SY 2.3/16 TF/VA228	55.56				43.6	110
YAR 212-2F/VA228	60.00	60	110		52.7	100
YAR 212-2F/VA201	60.00	60	110		52.7	50
FY 60 TF/VA228	60.00				52.7	100
SY 60 TF/VA228	60.00				52.7	100
FY 60 TF/VA201	60.00				52.7	50
SY 60 TF/VA201	60.00				52.7	50
YAR 212-207-2F/VA228	61.91	61	110		52.7	100
YAR 212-207-2F/VA201	61.91	61	110		52.7	50
FY 2.7/16 TF/VA228	61.91				52.7	100
SY 2.7/16 TF/VA228	61.91				52.7	100
SY 2.7/16 TF/VA201	61.91				52.7	50
FY 2.7/16 TF/VA201	61.91				52.7	50
