ตลับลูกปืนเม็ดกลมสองแถวปรับแนวได้เอง รูตรง

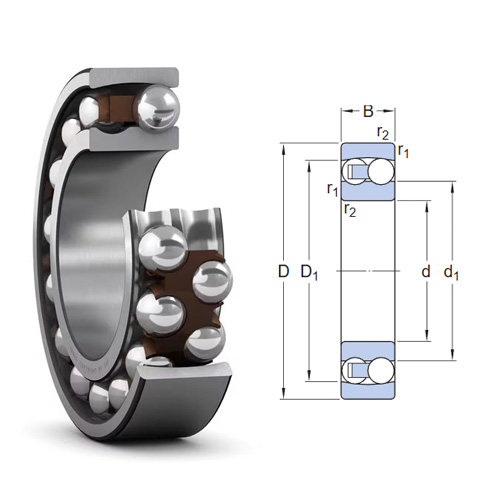

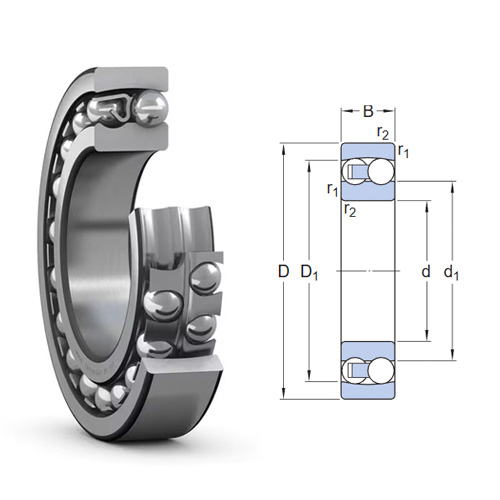

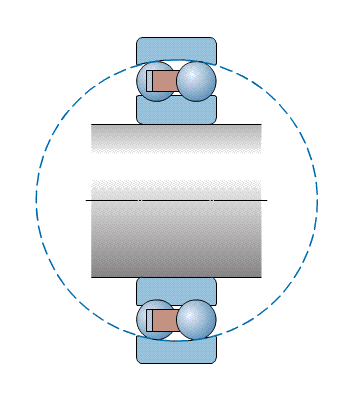

ตลับลูกปืนเม็ดกลมสองแถวปรับแนวได้เองรูตรงของ SKF (Self-Aligning Ball Bearings) ถูกออกแบบให้มี เม็ดลูกปืนสองแถวและรางวิ่งทรงโค้งที่วงแหวนรอบนอก ทำให้ตลับลูกปืนสามารถ ปรับแนวการทำงานได้เอง (Self-Aligning) เมื่อเกิดการเยื้องศูนย์ของเพลา (Shaft Misalignment) หรือการโก่งตัวของเพลาในระหว่างการทำงาน

ตลับลูกปืนชนิดรูตรง (Cylindrical Bore) จะถูกติดตั้งเข้ากับเพลาโดยตรงโดยไม่ต้องใช้ปลอกอะแดปเตอร์ ทำให้สะดวกต่อการติดตั้งและถอดเปลี่ยน

ขอใบเสนอราคา :

Designation	Bore diameter [d]	Outside diameter [D]	Width [B]	Basic dynamic load rating	Limiting speed	Link
Designation	Bore diameter [d]	Outside diameter [D]	Width [B]	Basic dynamic load rating	Limiting speed	Link
135 TN9	5	19	6	2.5	45 000
126 TN9	6	19	6	2.5	45 000
127 TN9	7	22	7	2.7	40 000
108 TN9	8	22	7	2.7	40 000
129 TN9	9	26	8	3.9	38 000
1200 ETN9	10	30	9	5.5	36 000
2200 E-2RS1TN9	10	30	14	5.5	17 000
2200 ETN9	10	30	14	8.1	34 000
1201 ETN9	12	32	10	6.2	32 000
2201 E-2RS1TN9	12	32	14	6.2	16 000
2201 ETN9	12	32	14	8.5	30 000
1301 EM	12	37	12	9.4	28 000
1301 ETN9	12	37	12	9.4	28 000
2301	12	37	17	11.7	28 000
1202 ETN9/C3	15	35	11	7.4	28 000
1202 ETN9	15	35	11	7.4	28 000
2202 E-2RS1TN9/W64	15	35	14	7.4	14 000
2202 E-2RS1TN9	15	35	14	7.4	14 000
2202 E-2RS1TN9/C3	15	35	14	7.4	14 000
2202 ETN9	15	35	14	8.7	26 000
1302 ETN9	15	42	13	10.8	24 000
2302 E-2RS1TN9	15	42	17	10.8	12 000
2302	15	42	17	11.9	24 000
1203 ETN9/C3	17	40	12	8.8	24 000
1203 ETN9	17	40	12	8.8	24 000
2203 E-2RS1TN9	17	40	16	8.8	12 000
2203 ETN9	17	40	16	10.6	24 000
2203 ETN9/C3	17	40	16	10.6	24 000
1303 ETN9	17	47	14	12.7	20 000
1303 EM	17	47	14	12.7	20 000
1303 EM/P62	17	47	14	12.7	20 000
2303 E-2RS1TN9	17	47	19	12.7	10 000
2303	17	47	19	14.3	22 000
1204 ETN9/C3	20	47	14	12.7	20 000
1204 ETN9	20	47	14	12.7	20 000
2204 E-2RS1TN9	20	47	18	12.7	10 000
2204 E-2RS1TN9/C3	20	47	18	12.7	10 000
1304 ETN9	20	52	15	14.3	18 000
1304 ETN9/C3	20	52	15	14.3	18 000
2304 E-2RS1TN9	20	52	21	14.3	9 000
2204 ETN9/C3	20	47	18	16.8	20 000
2204 ETN9	20	47	18	16.8	20 000
2304 M	20	52	21	18.2	19 000
2304 TN9	20	52	21	18.2	19 000
1205 ETN9	25	52	15	14.3	18 000
1205 EM	25	52	15	14.3	18 000
1205 ETN9/C3	25	52	15	14.3	18 000
2205 E-2RS1TN9	25	52	18	14.3	9 000
2205 E-2RS1TN9/C3	25	52	18	14.3	9 000
2205 ETN9/C3	25	52	18	16.8	18 000
2205 ETN9	25	52	18	16.8	18 000
1305 ETN9/C3	25	62	17	19	15 000
1305 ETN9	25	62	17	19	15 000
2305 E-2RS1TN9	25	62	24	19	7 500
2305 E-2RS1TN9/C3	25	62	24	19	7 500
2305 M/P6	25	62	24	24.2	16 000
2305 M	25	62	24	24.2	16 000
2305 ETN9	25	62	24	27	15 000
1206 ETN9	30	62	16	15.6	15 000
1206 EM	30	62	16	15.6	15 000
1206 ETN9/C3	30	62	16	15.6	15 000
2206 E-2RS1TN9/C3	30	62	20	15.6	7 500
2206 E-2RS1TN9	30	62	20	15.6	7 500
2206 E-RS1TN9/C3	30	62	20	15.6	15 000
11206 TN9	30	62	48	15.6	6 700
1306 ETN9	30	72	19	22.5	13 000
1306 ETN9/C3	30	72	19	22.5	13 000
2306 E-2RS1TN9	30	72	27	22.5	6 700
2206 ETN9/C3	30	62	20	23.8	15 000
2206 ETN9	30	62	20	23.8	15 000
2306/C3	30	72	27	31.2	13 000
2306 M	30	72	27	31.2	13 000
2306	30	72	27	31.2	13 000
1307 ETN9/C3	35	80	21	0.027	11 000
1207 EM	35	72	17	19	13 000
1207 ETN9/C3	35	72	17	19	13 000
1207 ETN9	35	72	17	19	13 000
2207 E-2RS1TN9	35	72	23	19	6 300
2207 E-2RS1TN9/C3	35	72	23	19	6 300
11207 TN9	35	72	52	19	5 600
1307 ETN9	35	80	21	26.5	11 000
2307 E-2RS1TN9/C3	35	80	31	26.5	5 600
2307 E-2RS1TN9	35	80	31	26.5	5 600
2207 ETN9/C3	35	72	23	30.2	12 000
2207 ETN9	35	72	23	30.2	12 000
2307 ETN9	35	80	31	39.7	12 000
2307 ETN9/C3	35	80	31	39.7	12 000
2307 EM	35	80	31	39.7	12 000
11208 TN9	40	80	56	19	5 000
1208 ETN9	40	80	18	19.9	11 000
1208 ETN9/C3	40	80	18	19.9	11 000
2208 E-2RS1TN9/C3	40	80	23	19.9	5 600
2208 E-2RS1TN9	40	80	23	19.9	5 600
2208 ETN9/C3	40	80	23	31.9	11 000
2208 ETN9	40	80	23	31.9	11 000
1308 ETN9	40	90	23	33.8	9 500
1308 ETN9/C3	40	90	23	33.8	9 500
1308 EM	40	90	23	33.8	9 500
2308 E-2RS1TN9	40	90	33	33.8	4 800
2308 ETN9/C3	40	90	33	54	10 000
2308 EM/C3	40	90	33	54	10 000
2308 ETN9	40	90	33	54	10 000
2308 EM	40	90	33	54	10 000
2308 EM/P6	40	90	33	54	10 000
1209 ETN9	45	85	19	22.9	11 000
1209 ETN9/C3	45	85	19	22.9	11 000
2209 E-2RS1TN9	45	85	23	22.9	5 300
11209 TN9	45	85	58	22.9	4 500
2209 ETN9/C3	45	85	23	32.5	10 000
2209 ETN9	45	85	23	32.5	10 000
1309 ETN9	45	100	25	39	8 500
1309 ETN9/C3	45	100	25	39	8 500
2309 E-2RS1TN9	45	100	36	39	4 300
2309 M/VQ335	45	100	36	54	9 000
2309 ETN9	45	100	36	63.7	9 000
2309 EM	45	100	36	63.7	9 000
2309 EM/C3	45	100	36	63.7	9 000
2309 ETN9/C3	45	100	36	63.7	9 000
2210 E-2RS1TN9/C3	50	90	23	22.9	4 800
2210 E-2RS1TN9	50	90	23	22.9	4 800
1210 ETN9	50	90	20	26.5	10 000
1210 ETN9/C3	50	90	20	26.5	10 000
11210 TN9	50	90	58	26.5	4 300
2210 ETN9	50	90	23	33.8	9 500
2210 ETN9/C3	50	90	23	33.8	9 500
1310 ETN9	50	110	27	43.6	8 000
1310 ETN9/C3	50	110	27	43.6	8 000
2310 E-2RS1TN9	50	110	40	43.6	4 000
2310/C3	50	110	40	63.7	8 500
2310 M	50	110	40	63.7	8 500
2310	50	110	40	63.7	8 500
1211 ETN9	55	100	21	27.6	9 000
1211 ETN9/C3	55	100	21	27.6	9 000
2211 E-2RS1TN9	55	100	25	27.6	4 300
2211 ETN9/C3	55	100	25	39	8 500
2211 ETN9	55	100	25	39	8 500
1311 ETN9	55	120	29	50.7	7 500
1311 ETN9/C3	55	120	29	50.7	7 500
2311 M/C3	55	120	43	76.1	7 500
2311 M	55	120	43	76.1	7 500
2311	55	120	43	76.1	7 500
2311/C3	55	120	43	76.1	7 500
1212 ETN9/C3	60	110	22	31.2	8 000
1212 ETN9	60	110	22	31.2	8 000
2212 E-2RS1TN9	60	110	28	31.2	3 800
11212 TN9	60	110	62	31.2	3 400
2212 ETN9	60	110	28	48.8	8 000
2212 ETN9/C3	60	110	28	48.8	8 000
1312 ETN9/C3	60	130	31	58.5	6 300
1312 ETN9	60	130	31	58.5	6 300
2312/C3	60	130	46	87.1	7 000
2312	60	130	46	87.1	7 000
2312 M	60	130	46	87.1	7 000
1213 ETN9/C3	65	120	23	35.1	7 000
1213 ETN9	65	120	23	35.1	7 000
2213 E-2RS1TN9	65	120	31	35.1	3 600
2213 ETN9	65	120	31	57.2	7 000
2213 ETN9/C3	65	120	31	57.2	7 000
1313 ETN9	65	140	33	65	6 000
2313/C3	65	140	48	95.6	6 300
2313	65	140	48	95.6	6 300
2313 M	65	140	48	95.6	6 300
1214 ETN9	70	125	24	35.8	7 000
2214 E-2RS1TN9	70	125	31	35.8	3 400
2214	70	125	31	44.2	6 700
1314	70	150	35	74.1	6 000
1314/C3	70	150	35	74.1	6 000
2314 M	70	150	51	111	6 000
2314/C3	70	150	51	111	6 000
2314	70	150	51	111	6 000
2314 M/C3	70	150	51	111	6 000
1215/C3	75	130	25	39	6 700
1215	75	130	25	39	6 700
2215 ETN9/C3	75	130	31	58.5	6 300
2215 ETN9	75	130	31	58.5	6 300
1315	75	160	37	79.3	5 600
2315	75	160	55	124	5 600
2315/C3	75	160	55	124	5 600
2315 M	75	160	55	124	5 600
1216/C3	80	140	26	39.7	6 000
1216	80	140	26	39.7	6 000
2216 ETN9/C3	80	140	33	65	6 000
2216 ETN9	80	140	33	65	6 000
1316	80	170	39	88.4	5 300
2316 M	80	170	58	135	5 300
2316	80	170	58	135	5 300
2316 M/C3	80	170	58	135	5 300
1217	85	150	28	48.8	5 600
2217	85	150	36	58.5	5 600
1317	85	180	41	97.5	4 800
2317 M	85	180	60	140	4 800
1218/C3	90	160	30	57.2	5 300
1218	90	160	30	57.2	5 300
2218	90	160	40	70.2	5 300
2218/C3	90	160	40	70.2	5 300
1318	90	190	43	117	4 500
2318 M	90	190	64	151	4 500
1219	95	170	32	63.7	5 000
2219 M	95	170	43	83.2	5 000
1319	95	200	45	133	4 300
2319 M	95	200	67	165	4 300
1220	100	180	34	68.9	4 800
2220	100	180	46	97.5	4 800
2220 M	100	180	46	97.5	4 800
1320	100	215	47	143	4 000
2320 M	100	215	73	190	4 000
1222	110	200	38	88.4	4 300
2222	110	200	53	124	4 300
2222 M	110	200	53	124	4 300
1322 M	110	240	50	163	3 600
1224 M	120	215	42	119	4 000
1226 M	130	230	46	127	3 600
13030	150	225	56	57.2	3 400
13940	200	280	60	60.5	2 600
13944	220	300	60	60.5	2 400
13948	240	320	60	60.5	2 200

รหัสสินค้าและรุ่นตลับลูกปืนที่รองรับในหน้านี้: > [135 TN9, 126 TN9, 127 TN9, 108 TN9, 129 TN9, 1200 ETN9, 2200 E-2RS1TN9, 2200 ETN9, 1201 ETN9, 2201 E-2RS1TN9, 2201 ETN9, 1301 EM, 1301 ETN9, 2301, 1202 ETN9/C3, 1202 ETN9, 2202 E-2RS1TN9/W64, 2202 E-2RS1TN9, 2202 E-2RS1TN9/C3, 2202 ETN9, 1302 ETN9, 2302 E-2RS1TN9, 2302, 1203 ETN9/C3, 1203 ETN9, 2203 E-2RS1TN9, 2203 ETN9, 2203 ETN9/C3, 1303 ETN9, 1303 EM, 1303 EM/P62, 2303 E-2RS1TN9, 2303, 1204 ETN9/C3, 1204 ETN9, 2204 E-2RS1TN9, 2204 E-2RS1TN9/C3, 1304 ETN9, 1304 ETN9/C3, 2304 E-2RS1TN9, 2204 ETN9/C3, 2204 ETN9, 2304 M, 2304 TN9, 1205 ETN9, 1205 EM, 1205 ETN9/C3, 2205 E-2RS1TN9, 2205 E-2RS1TN9/C3, 2205 ETN9/C3, 2205 ETN9, 1305 ETN9/C3, 1305 ETN9, 2305 E-2RS1TN9, 2305 E-2RS1TN9/C3, 2305 M/P6, 2305 M, 2305 ETN9, 1206 ETN9, 1206 EM, 1206 ETN9/C3, 2206 E-2RS1TN9/C3, 2206 E-2RS1TN9, 2206 E-RS1TN9/C3, 11206 TN9, 1306 ETN9, 1306 ETN9/C3, 2306 E-2RS1TN9, 2206 ETN9/C3, 2206 ETN9, 2306/C3, 2306 M, 2306, 1307 ETN9/C3, 1207 EM, 1207 ETN9/C3, 1207 ETN9, 2207 E-2RS1TN9, 2207 E-2RS1TN9/C3, 11207 TN9, 1307 ETN9, 2307 E-2RS1TN9/C3, 2307 E-2RS1TN9, 2207 ETN9/C3, 2207 ETN9, 2307 ETN9, 2307 ETN9/C3, 2307 EM, 11208 TN9, 1208 ETN9, 1208 ETN9/C3, 2208 E-2RS1TN9/C3, 2208 E-2RS1TN9, 2208 ETN9/C3, 2208 ETN9, 1308 ETN9, 1308 ETN9/C3, 1308 EM, 2308 E-2RS1TN9, 2308 ETN9/C3, 2308 EM/C3, 2308 ETN9, 2308 EM, 2308 EM/P6, 1209 ETN9, 1209 ETN9/C3, 2209 E-2RS1TN9, 11209 TN9, 2209 ETN9/C3, 2209 ETN9, 1309 ETN9, 1309 ETN9/C3, 2309 E-2RS1TN9, 2309 M/VQ335, 2309 ETN9, 2309 EM, 2309 EM/C3, 2309 ETN9/C3, 2210 E-2RS1TN9/C3, 2210 E-2RS1TN9, 1210 ETN9, 1210 ETN9/C3, 11210 TN9, 2210 ETN9, 2210 ETN9/C3, 1310 ETN9, 1310 ETN9/C3, 2310 E-2RS1TN9, 2310/C3, 2310 M, 2310, 1211 ETN9, 1211 ETN9/C3, 2211 E-2RS1TN9, 2211 ETN9/C3, 2211 ETN9, 1311 ETN9, 1311 ETN9/C3, 2311 M/C3, 2311 M, 2311, 2311/C3, 1212 ETN9/C3, 1212 ETN9, 2212 E-2RS1TN9, 11212 TN9, 2212 ETN9, 2212 ETN9/C3, 1312 ETN9/C3, 1312 ETN9, 2312/C3, 2312, 2312 M, 1213 ETN9/C3, 1213 ETN9, 2213 E-2RS1TN9, 2213 ETN9, 2213 ETN9/C3, 1313 ETN9, 2313/C3, 2313, 2313 M, 1214 ETN9, 2214 E-2RS1TN9, 2214, 1314, 1314/C3, 2314 M, 2314/C3, 2314, 2314 M/C3, 1215/C3, 1215, 2215 ETN9/C3, 2215 ETN9, 1315, 2315, 2315/C3, 2315 M, 1216/C3, 1216, 2216 ETN9/C3, 2216 ETN9, 1316, 2316 M, 2316, 2316 M/C3, 1217, 2217, 1317, 2317 M, 1218/C3, 1218, 2218, 2218/C3, 1318, 2318 M, 1219, 2219 M, 1319, 2319 M, 1220, 2220, 2220 M, 1320, 2320 M, 1222, 2222, 2222 M, 1322 M, 1224 M, 1226 M, 13030, 13940, 13944, 13948]
