ตลับลูกปืนสัมผัสเชิงมุม สัมผัสสี่จุด

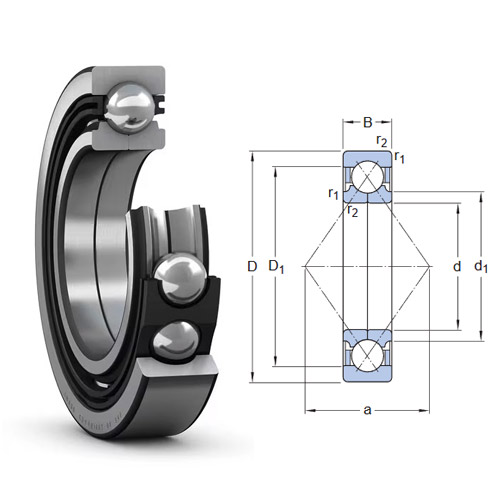

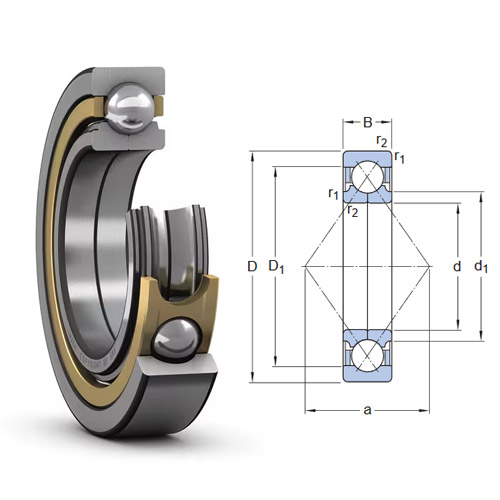

เป็นตลับลูกปืนที่ออกแบบให้มี จุดสัมผัสระหว่างเม็ดลูกปืนกับรางวิ่ง 4 จุด (Four Contact Points) ทำให้สามารถรองรับ แรงตามแนวแกน (Axial Load) ได้ทั้งสองทิศทางในตลับลูกปืนตัวเดียว พร้อมทั้งรองรับแรงในแนวรัศมี (Radial Load) ได้ในระดับหนึ่ง โครงสร้างของตลับลูกปืนชนิดนี้มักใช้ วงแหวนรอบในแบบแยกสองชิ้น (Split Inner Ring) ซึ่งช่วยให้สามารถบรรจุเม็ดลูกปืนได้จำนวนมาก เพิ่มความสามารถในการรับแรงและทำให้ติดตั้งได้สะดวก ตลับลูกปืนแบบสัมผัสสี่จุดจึงเหมาะสำหรับการใช้งานที่ต้องการ ลดจำนวนตลับลูกปืนในชุดประกอบ และประหยัดพื้นที่ติดตั้งในเครื่องจักร

ตลับลูกปืนชนิดนี้นิยมใช้ใน เกียร์บ็อกซ์ ปั๊ม เครื่องอัดลม (Compressor) เครื่องจักรอุตสาหกรรม เครื่องจักรงานหนัก และระบบส่งกำลัง ที่ต้องรองรับแรงตามแนวแกนสองทิศทางภายในพื้นที่จำกัด

ขอใบเสนอราคา :

Designation	Bore diameter [d]	Outside diameter [D]	Width [B]	Basic dynamic load rating	Limiting speed	Link
Designation	Bore diameter [d]	Outside diameter [D]	Width [B]	Basic dynamic load rating	Limiting speed	Link
PER.BB203RYY50	13.081	40	18.288	14.4
PER.WBB205RPP62	14.5	53.086	29.15	21.3
PER.BB205RRP2-A	16.03	52	17.983	21.3
PER.BB204RRY3-C	16.053	45.225	18.67	19.3
PER.BB204RRY3	16.053	45.225	18.669	19.6
PER.BB204RRP3	16.053	45.225	18.669	19.6
PER.BB204RRY3-D	16.053	45.225	18.669	19.6
PER.BB304RPP50	16.129	53.068	24.608	14.9
PER.WBB205RPP60-A	16.129	53.086	19.43	21.3
PER.BB205RPP13	16.129	53.086	19.43	26.2
PER.BB203RYY2	16.256	40	18.288	8.4
PER.BB203RYY2-B	16.256	40	18.288	9.0
PER.BB203RRR2	16.256	40	18.288	14.4
QJ 203 N2MA/C2L	17	40	12	17.0	30 000
QJ 203 N2MA	17	40	12	17.0	30 000
QJ 303 LA/P63	17	47	14	23.4	28 000
PER.BB204HYY2	17.653	47	20.955	12.8
PER.BB205RRP2	19.202	52	21.107	13.1
QJ 304 MA	20	52	15	32.0	24 000
QJ 304 N2MA/C2L	20	52	15	32.0	24 000
QJ 205 N2MA/C2L	25	52	15	27.0	22 000
QJ 305 MA/C2L	25	62	17	42.5	20 000
QJ 206 N2MA/C2L	30	62	16	37.5	19 000
QJ 206 MA	30	62	16	37.5	19 000
QJ 306 LA/P63	30	72	19	49.4	17 000
QJ 306 N2MA/C2L	30	72	19	53.0	17 000
QJ 306 MA	30	72	19	53.0	17 000
QJ 207 MA/C2LS1	35	72	17	46.2	17 000
QJ 207 N2MA/C2L	35	72	17	49.0	17 000
QJ 207 N2MA	35	72	17	49.0	17 000
QJ 307 LA/P63	35	80	21	59.2	15 000
QJ 307 MA	35	80	21	64.0	15 000
QJ 307 N2MA/C2L	35	80	21	64.0	15 000
305943	40	80	18	52.7	15 000
QJ 208	40	80	18	55.3	15 000
QJ 208 MA	40	80	18	56.0	15 000
QJ 208 MA/C2L	40	80	18	56.0	15 000
QJ 308 N2MA	40	90	23	78.0	14 000
QJ 308 MA	40	90	23	78.0	14 000
QJ 308 N2MA/C2L	40	90	23	78.0	14 000
QJ 308 MA/C3	40	90	23	78.0	14 000
QJ 209 MA/C3	45	85	19	63	14 000
QJ 209 MA	45	85	19	63	14 000
QJ 209/C2	45	85	19	65	14 000
QJ 309 MA	45	100	25	100	12 000
QJ 309 MA/C3	45	100	25	100	12 000
QJ 309 N2MA/C2L	45	100	25	100	12 000
QJ 309 PHAS	45	100	25	100	12 000
QJ 309 MA/C2L	45	100	25	100	12 000
QJ 210 MA	50	90	20	65.5	13 000
QJ 210 MA/C3	50	90	20	65.5	13 000
QJ 210 MA/C2L	50	90	20	65.5	13 000
QJ 310 MA	50	110	27	118	11 000
QJ 310 MA/C2L	50	110	27	118	11 000
QJ 211 N2MA/C2L	55	100	21	85	11 000
QJ 211 MA	55	100	21	85	11 000
QJ 211 N2MA/C4H	55	100	21	85	11 000
QJ 211 MA/C3	55	100	21	85	11 000
QJ 311 N2MA/C2L	55	120	29	137	10 000
QJ 311 N2MA/C3	55	120	29	137	10 000
QJ 311 MA	55	120	29	137	10 000
QJ 212	60	110	22	95.6	10 000
QJ 212 N2PHAS/C2L	60	110	22	96.5	10 000
QJ 212 MA/C2	60	110	22	96.5	10 000
QJ 212 N2MA/C4B20	60	110	22	96.5	10 000
QJ 212 MA/C2L	60	110	22	96.5	10 000
QJ 212 MA/C3	60	110	22	96.5	10 000
QJ 212 MA	60	110	22	96.5	10 000
QJ 212 N2MA/C3	60	110	22	96.5	10 000
QJ 312 MA	60	130	31	156	9 000
QJ 312 PHAS	60	130	31	156	9 000
QJ 312 N2MA/C2L	60	130	31	156	9 000
QJ 312 MA/C3	60	130	31	156	9 000
QJ 213 MA/C2L	65	120	23	104	9 500
QJ 213 N2MA/C4	65	120	23	110	9 500
QJ 213 MA/C3	65	120	23	110	9 500
QJ 213 MA	65	120	23	110	9 500
QJ 213 N2MA	65	120	23	110	9 500
QJ 313 MA/C2L	65	140	33	176	8 500
QJ 313 MA	65	140	33	176	8 500
QJ 214 N2PHAS/C2L	70	125	24	120	9 000
QJ 214 MA/C3	70	125	24	120	9 000
QJ 214 N2MA	70	125	24	120	9 000
QJ 214 N2MA/C3	70	125	24	120	9 000
QJ 214 N2MA/C4B20	70	125	24	120	9 000
QJ 314 N2MA/C2L	70	150	35	200	8 000
QJ 314 MA	70	150	35	200	8 000
QJ 314 N2MA/C3	70	150	35	200	8 000
QJ 314 N2MA	70	150	35	200	8 000
QJ 215 MA/C2L	75	130	25	125	8 500
QJ 215 N2MA/C4B20	75	130	25	125	8 500
QJ 215 MA	75	130	25	125	8 500
QJ 315 N2MA	75	160	37	216	7 500
QJ 315 N2MA/C2L	75	160	37	216	7 500
QJ 216 MA/C2L	80	140	26	146	8 000
QJ 216 N2MA	80	140	26	146	8 000
QJ 216 N2MA/C4B20	80	140	26	146	8 000
QJ 216 MA	80	140	26	146	8 000
QJ 316 N2MA/C3	80	170	39	232	7 000
QJ 316 N2MA/C2L	80	170	39	232	7 000
QJ 316 N2MA	80	170	39	232	7 000
QJ 1017 N2MA/C4B20	85	130	22	99.5	8 000
QJ 217 N2MA/C3	85	150	28	156	7 500
QJ 217 N2MA	85	150	28	156	7 500
QJ 217 N2MA/C4	85	150	28	156	7 500
QJ 217 MA/C2L	85	150	28	156	7 500
QJ 217 MA	85	150	28	156	7 500
QJ 317 N2MA/C3	85	180	41	250	6 700
QJ 317 N2MA	85	180	41	250	6 700
QJ 218 N2MA/C4B20	90	160	30	186	7 000
QJ 218 N2MA	90	160	30	186	7 000
QJ 218 N2MA/C3	90	160	30	186	7 000
QJ 318 N2MA/C3	90	190	43	285	6 300
QJ 318 N2MA/C4B20	90	190	43	285	6 300
QJ 318 N2MA	90	190	43	285	6 300
QJ 219 N2MA/C4B20	95	170	32	212	6 700
QJ 219 N2MA	95	170	32	212	6 700
QJ 319 N2MA	95	200	45	305	6 000
QJ 319 N2PHAS	95	200	45	305	6 000
QJ 319 N2MA/C2L	95	200	45	305	6 000
QJ 220 N2MA/C4B20	100	180	34	236	6 300
QJ 220 N2MA/C3	100	180	34	236	6 300
QJ 220 N2MA	100	180	34	236	6 300
QJ 320 N2MA/C2L	100	215	47	345	5 600
QJ 320 N2MA	100	215	47	345	5 600
QJ 222 N2MA/C4B20	110	200	38	280	5 600
QJ 222 N2MA/C3	110	200	38	280	5 600
QJ 222 N2MA	110	200	38	280	5 600
QJ 322 N2MA/C3	110	240	50	390	4 800
QJ 322 N2MA/C2L	110	240	50	390	4 800
QJ 322 N2MA	110	240	50	390	4 800
QJ 224 N2MA/C3	120	215	40	300	5 000
QJ 224 N2MA	120	215	40	300	5 000
QJ 224 N2MA/C4B20	120	215	40	300	5 000
QJ 324 N2MA/C3	120	260	55	415	4 500
QJ 324 N2MA	120	260	55	415	4 500
QJ 226 N2MA	130	230	40	310	4 800
QJ 226 N2MA/C4B20	130	230	40	310	4 800
QJ 226 N2MA/C3	130	230	40	310	4 800
QJ 326 N2MA	130	280	58	455	4 000
QJ 228 N2MA/C3	140	250	42	345	4 300
QJ 228 N2MA/C4B20	140	250	42	345	4 300
QJ 228 N2MA	140	250	42	345	4 300
QJ 328 N2MA	140	300	62	500	3 800
QJ 328 N2MA/C3	140	300	62	500	3 800
QJ 230 N2MA	150	270	45	400	4 000
QJ 230 N2MA/C3	150	270	45	400	4 000
QJ 230 N2MA/C4B20	150	270	45	400	4 000
QJ 330 N2MA	150	320	65	530	3 600
QJ 330 N2MA/HA3L4BC3	150	320	65	530	3 600
QJ 330 N2MA/C3	150	320	65	530	3 600
QJ 232 N2MA/C3	160	290	48	450	3 800
QJ 232 N2MA	160	290	48	450	3 800
QJ 332 N2MA/C3	160	340	68	570	3 400
QJ 332 N2MA/L4BC3	160	340	68	570	3 400
QJ 332 N2MA	160	340	68	570	3 400
QJ 234 N2MA	170	310	52	455	3 400
QJ 334 N2MA	170	360	72	655	3 200
QJ 334 N2MA/C3	170	360	72	655	3 200
QJ 236 N2MA/C3	180	320	52	475	3 400
QJ 236 N2MA	180	320	52	475	3 400
QJ 336 N2MA/C3	180	380	75	680	3 000
QJ 336 N2MA	180	380	75	680	3 000
QJ 238 N2MA	190	340	55	510	3 200
QJ 338 N2MA	190	400	78	702	2 800
QJ 338 N2MA/C3	190	400	78	702	2 800
QJ 240 N2MA	200	360	58	540	3 000
QJ 240 N2MA/C3	200	360	58	540	3 000
QJ 1244 N2MA	220	400	78	592	2 600
QJ 344 N2MA	220	460	88	780	2 400
QJ 344 N2/309829	220	460	88	904	2 400
QJ 248 N2MA	240	440	72	650	2 400
QJ 1248 MA/344524	240	440	85	663	2 400
QJ 1252 MA/C3	260	480	90	741	2 200
QJ 1256 N2MA	280	500	90	728	2 000
QJ 1260 N2MA	300	540	98	832	1 900
QJ 1064 MA	320	480	74	715	2 000
QJ 1064 N2MA/C4	320	480	74	715	2 000
QJ 1080 N2MA	400	600	90	904	1 500
QJ 1984 N2MA	420	560	65	637	1 600
QJ 1096 N2MA	480	700	100	1 060	1 300
